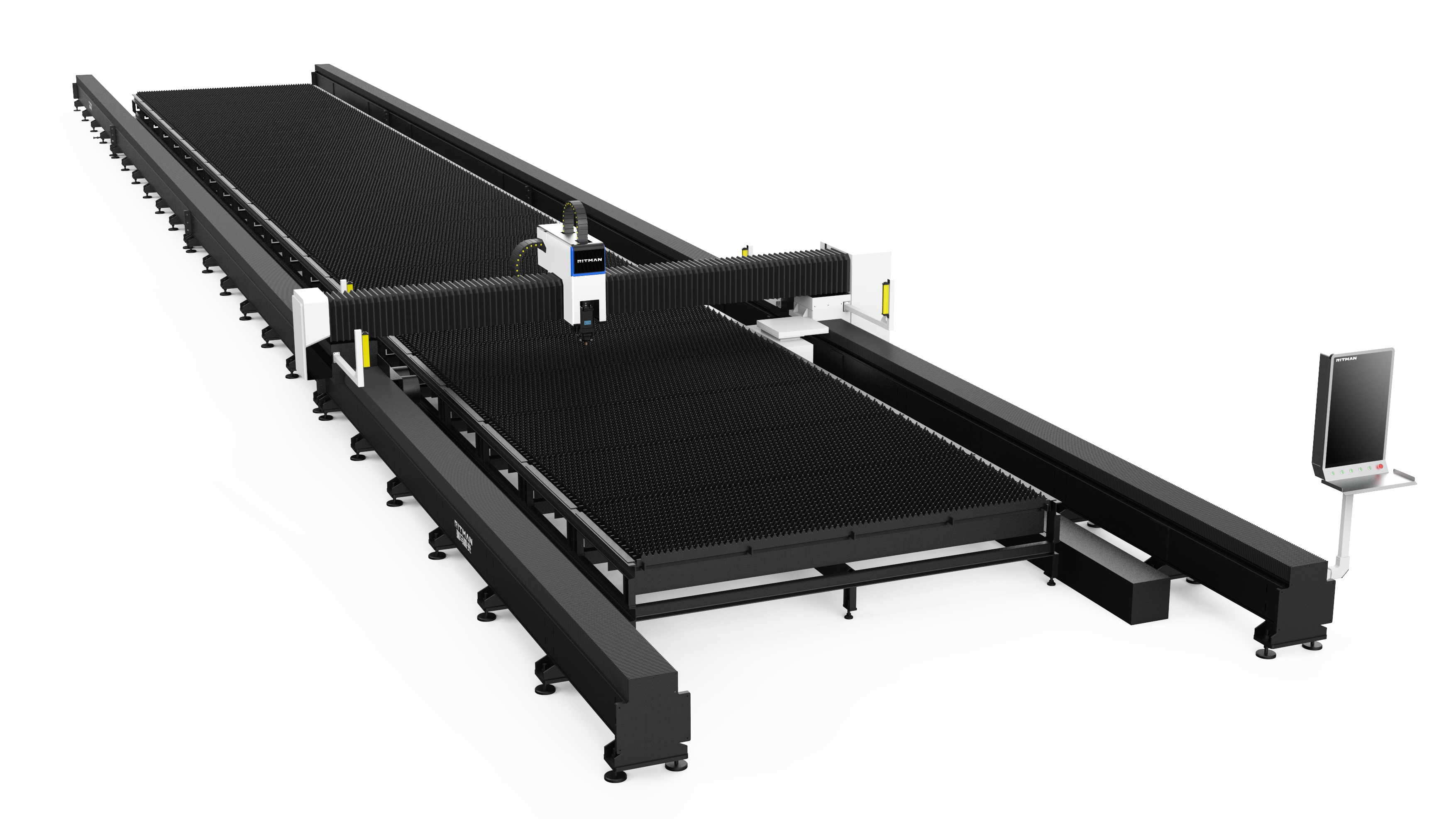

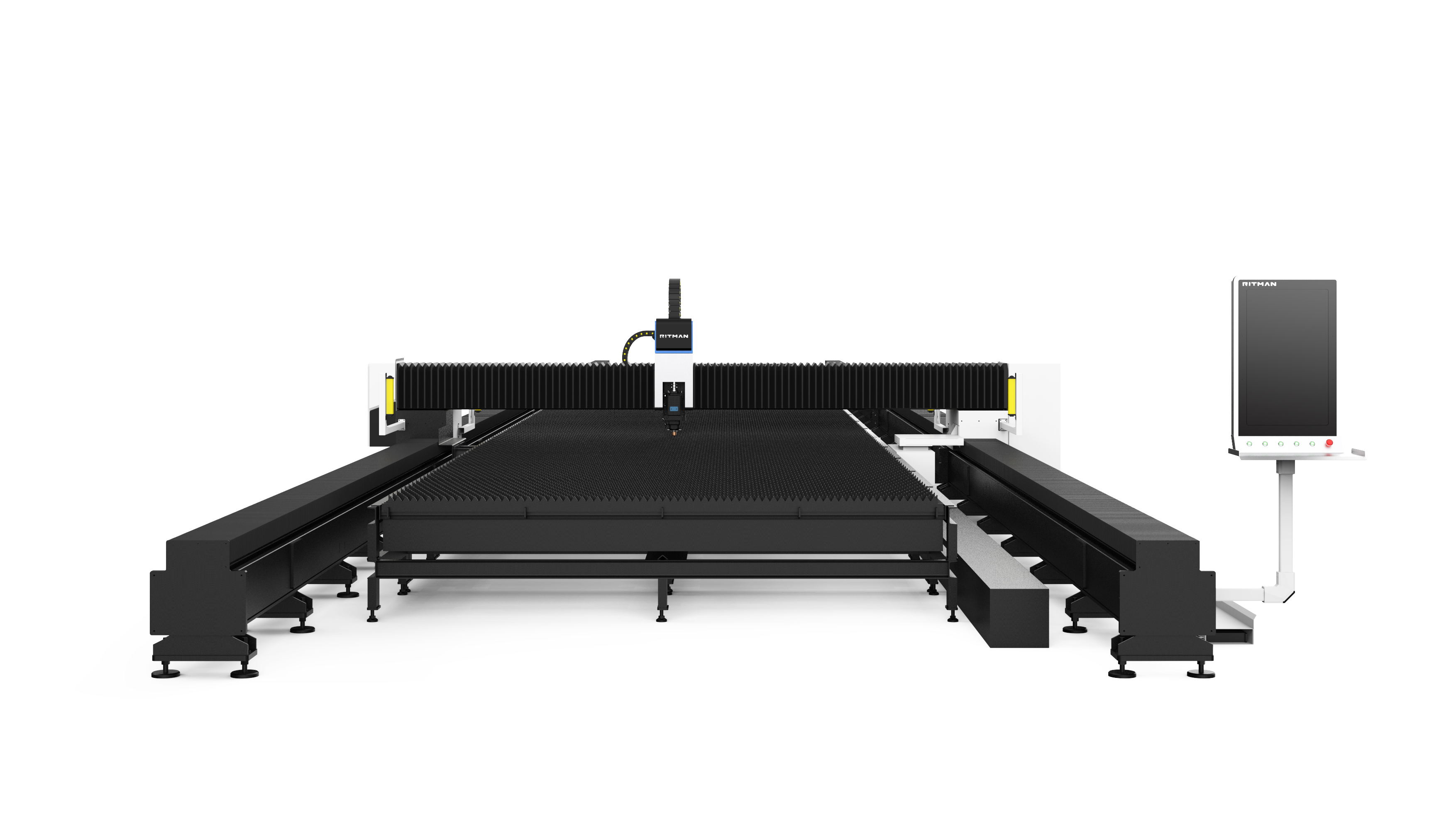

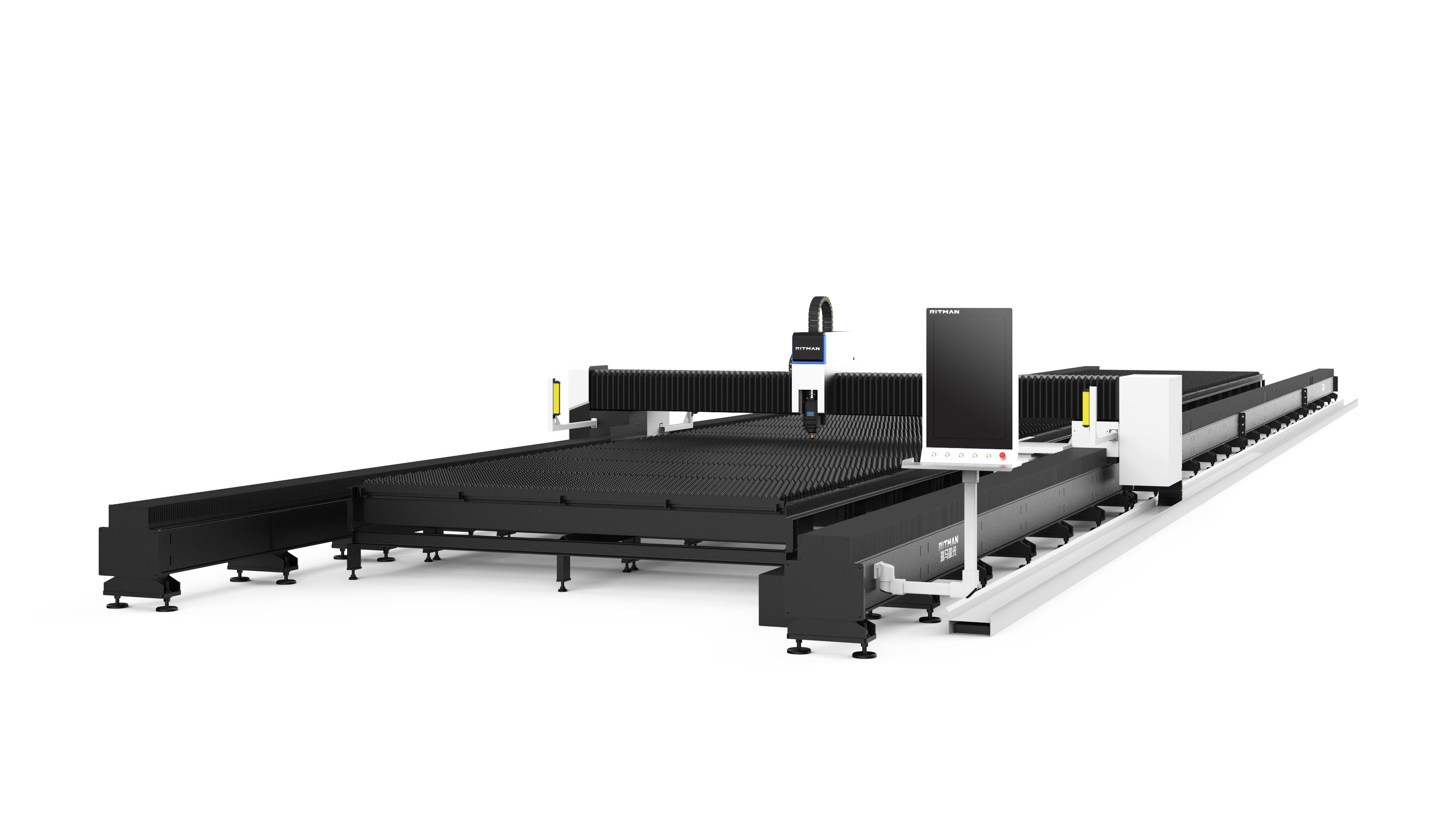

Large-format Sheet Laser Cutting Machine

Steel beams are made of steel plates that are spliced and welded. Steel beams have high rigidity and the accuracy of the beams can be stable for a long time. More suitable for large-span floor-rail laser cutting machines.

One end of the beam has a special floating structure. Ensure long-term operational stability.

Contact Now Pdf Download

Product Details

RM-LC GF Series

Large-format Sheet Laser Cutting Machine

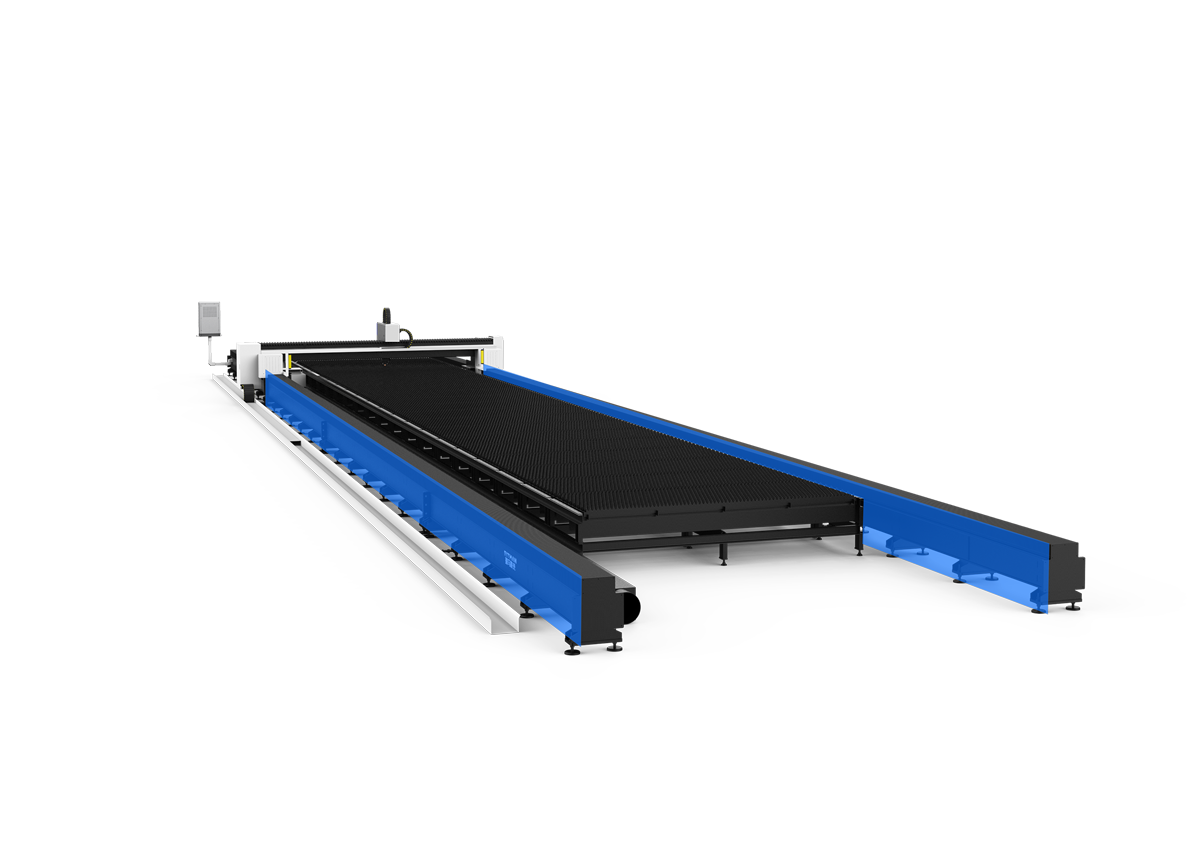

High Strength Mortise AndTenon Welded Bed Body

The track is welded with H-shaped steel and steel plates. Standard unit sections: 8m and6m beams, with unit section lengths selected according to customer requirements.

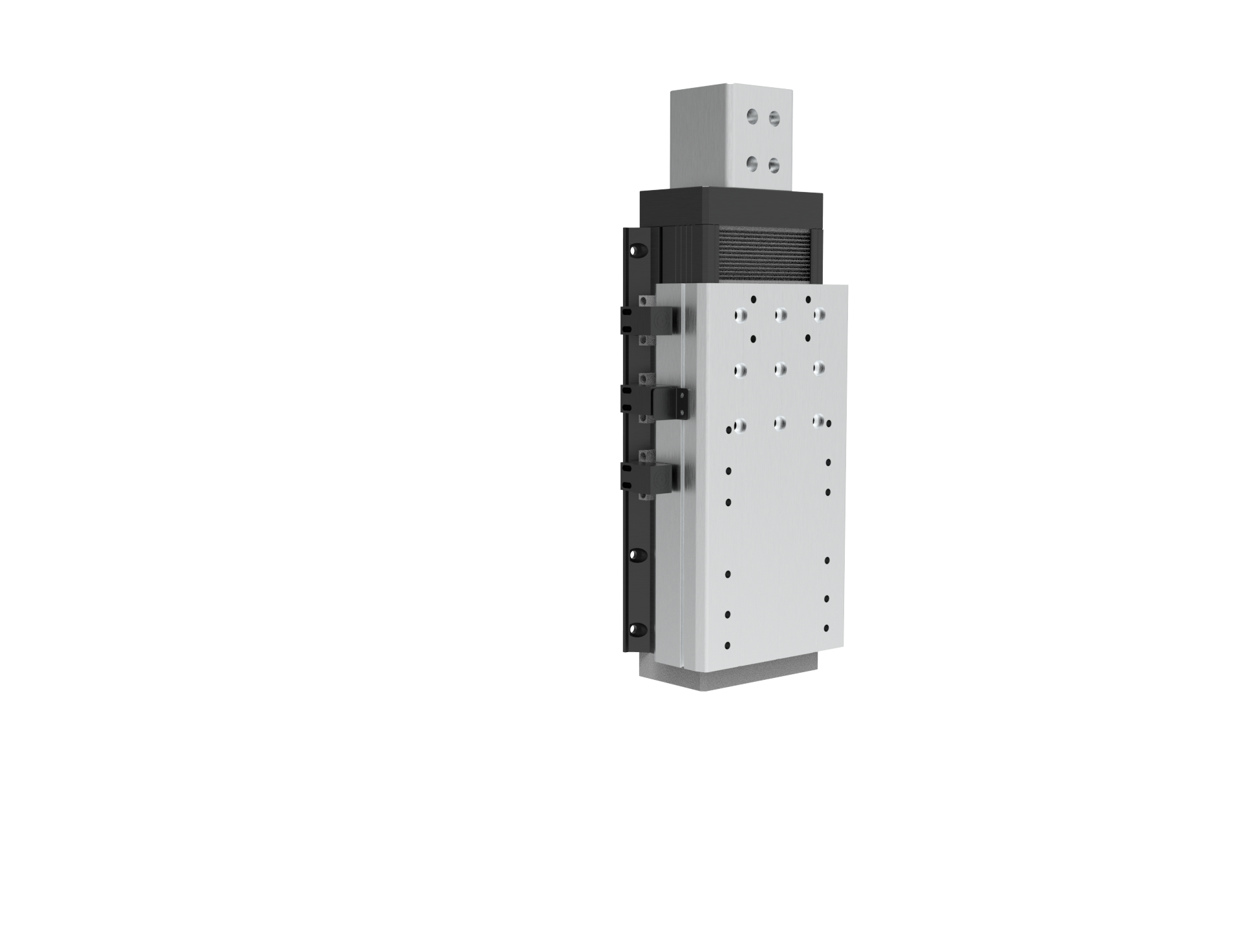

Precision Module Transmission

The integrated Z-axis main body is welded with aluminum alloy plate, matched withprecision screw module transmission, with high accuracy and fast speed

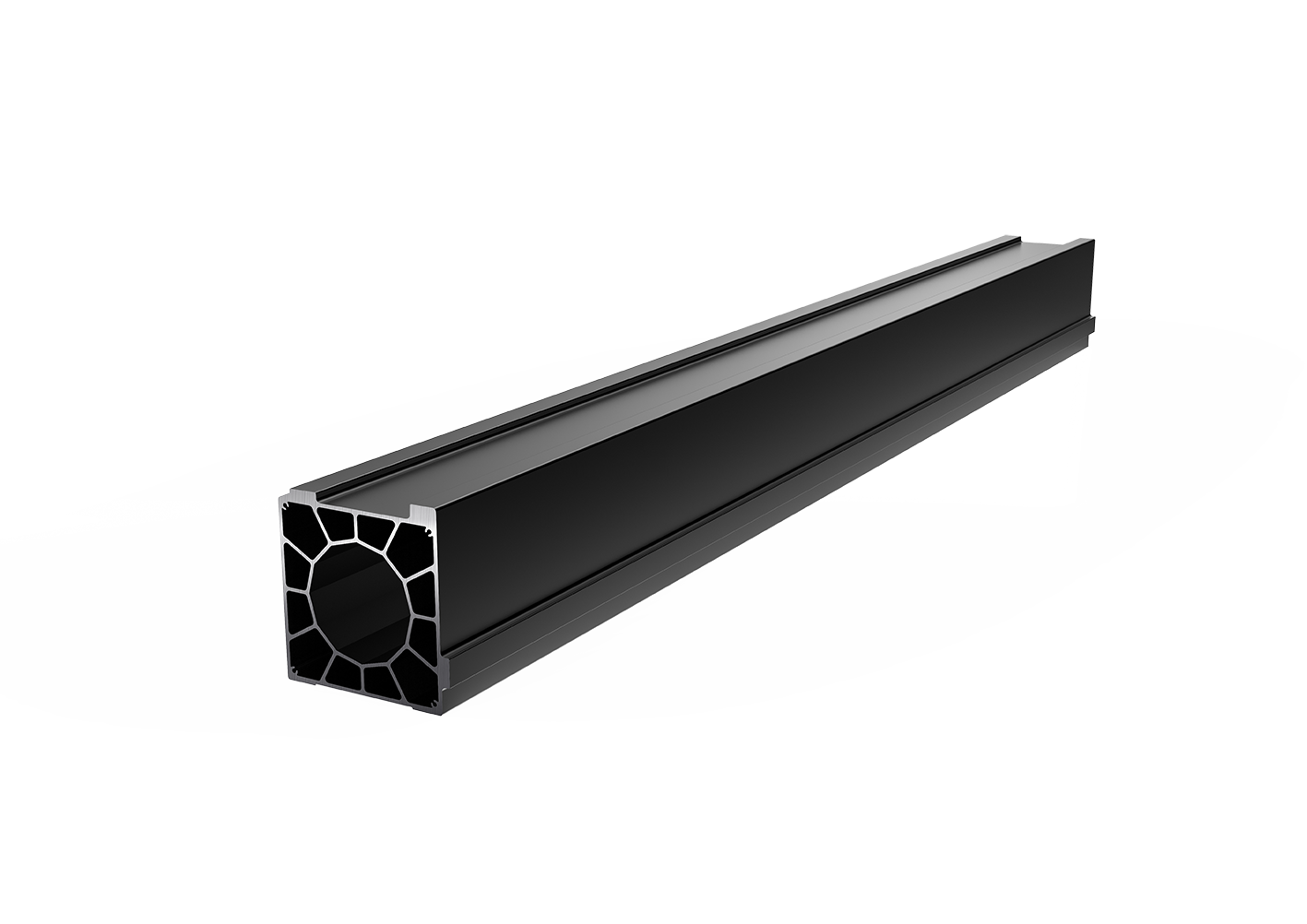

Steel Crossbeam

Steel crossbeams are made by splicing and welding steel plates. Steel crossbeams havehigh rigidity, and their accuracy can be stable for a long time. More suitable forlarge-span ground rail laser cutting machines.

Large-format Sheet Laser Cutting Machine

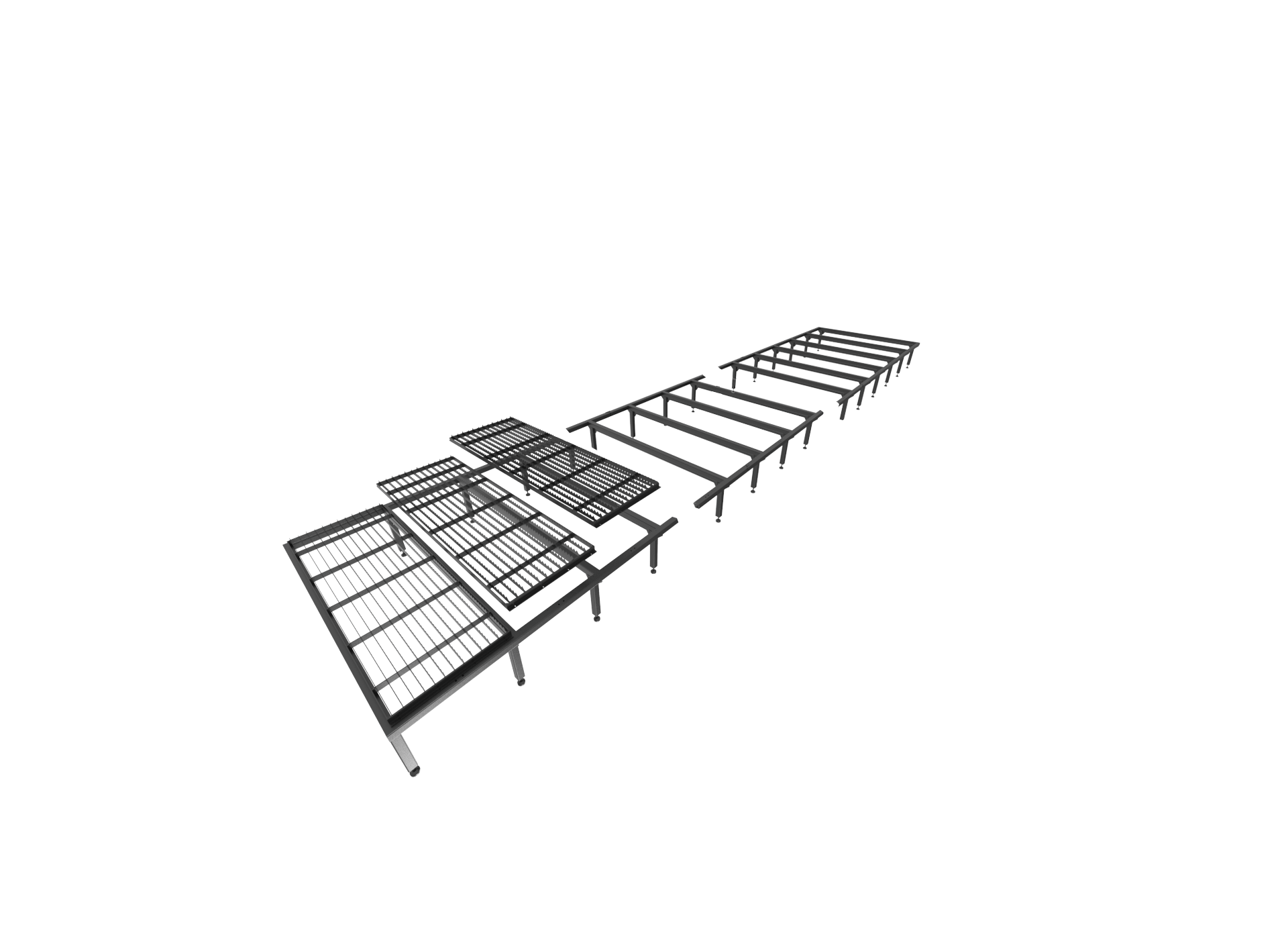

Modular Workbench

The modular design of the workbench has a stable structure and strong load-bearingcapacity, making it easy to disassemble, replace, and maintain.

Large-format Sheet Laser Cutting Machine

Bus CNC Laser Controller

Advanced CNC Fiber laser cutting machine controller, adopts Bus system, easy to maintain and multi-function of Anti-collision cutting and residue visual cutting.

Technical Parameters

Model	RM-LC GF24030	RM-LC GF24035	RM-LC GF24040	RM-LC GF240
Power	6000W-30000W	6000W-30000W	6000W-30000W	6000W-30000W
Processing Format	24000mmx3000mm	24000mmx3000mm	24000mmx4000mm	26000mmx3100mm
Acceleration	0.8G	0.8G	0.8G	0.8G
Max.No-loda Speed	60m/min	60m/min	60m/min	60m/min
Positioning Accuracy	±0.05mm	±0.05mm	±0.05mm	±0.05mm
Repositioning Accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm
