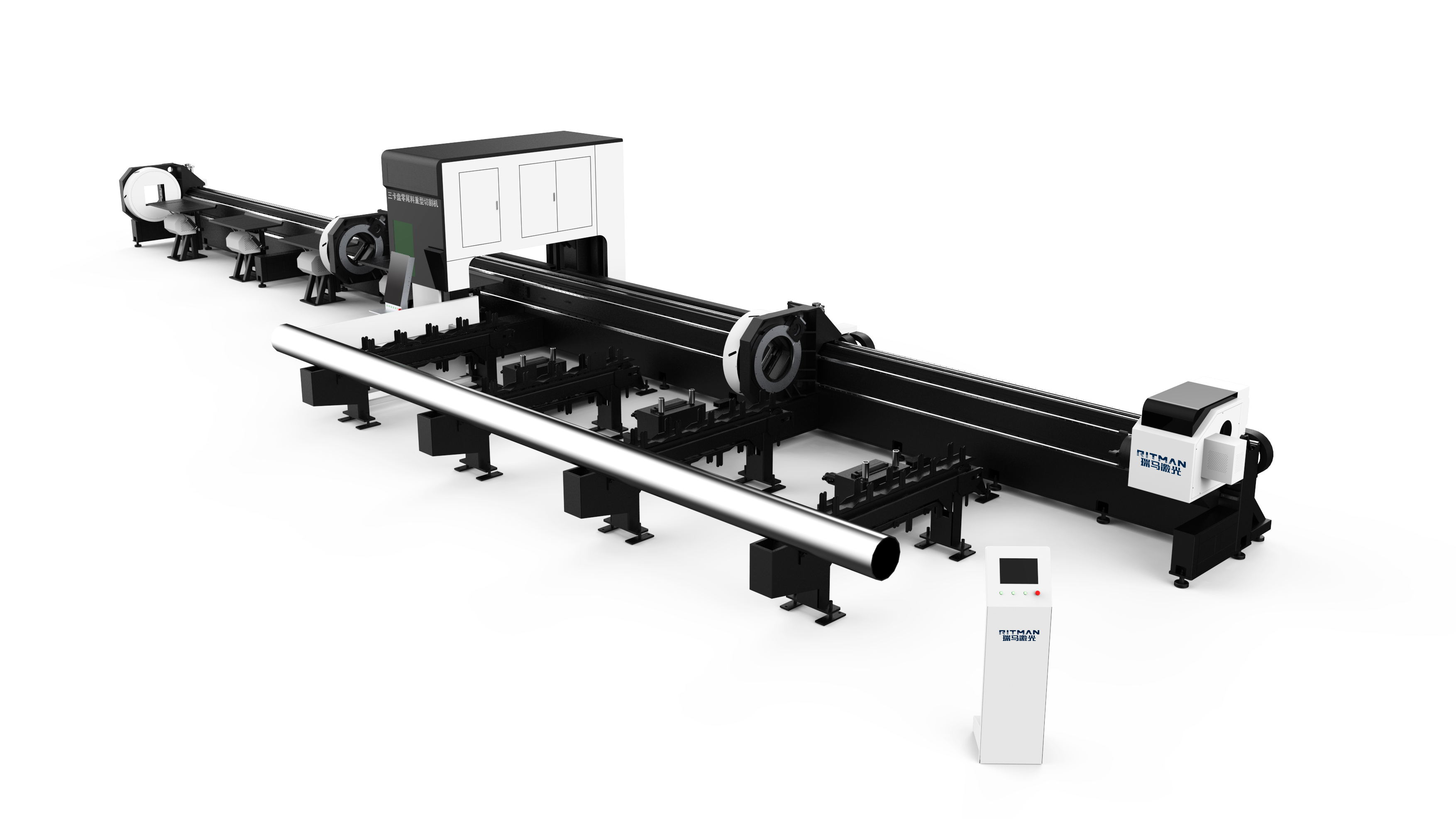

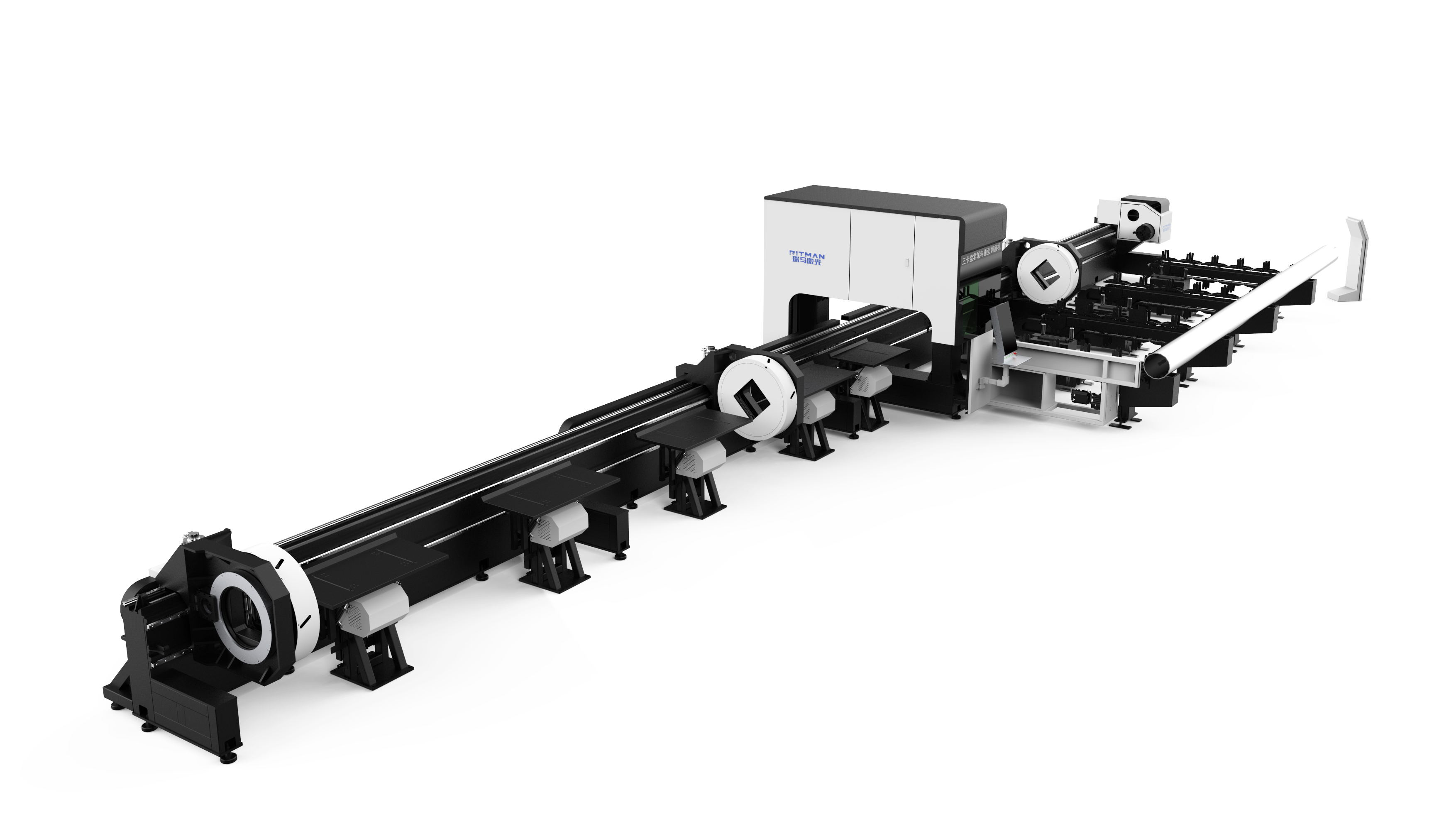

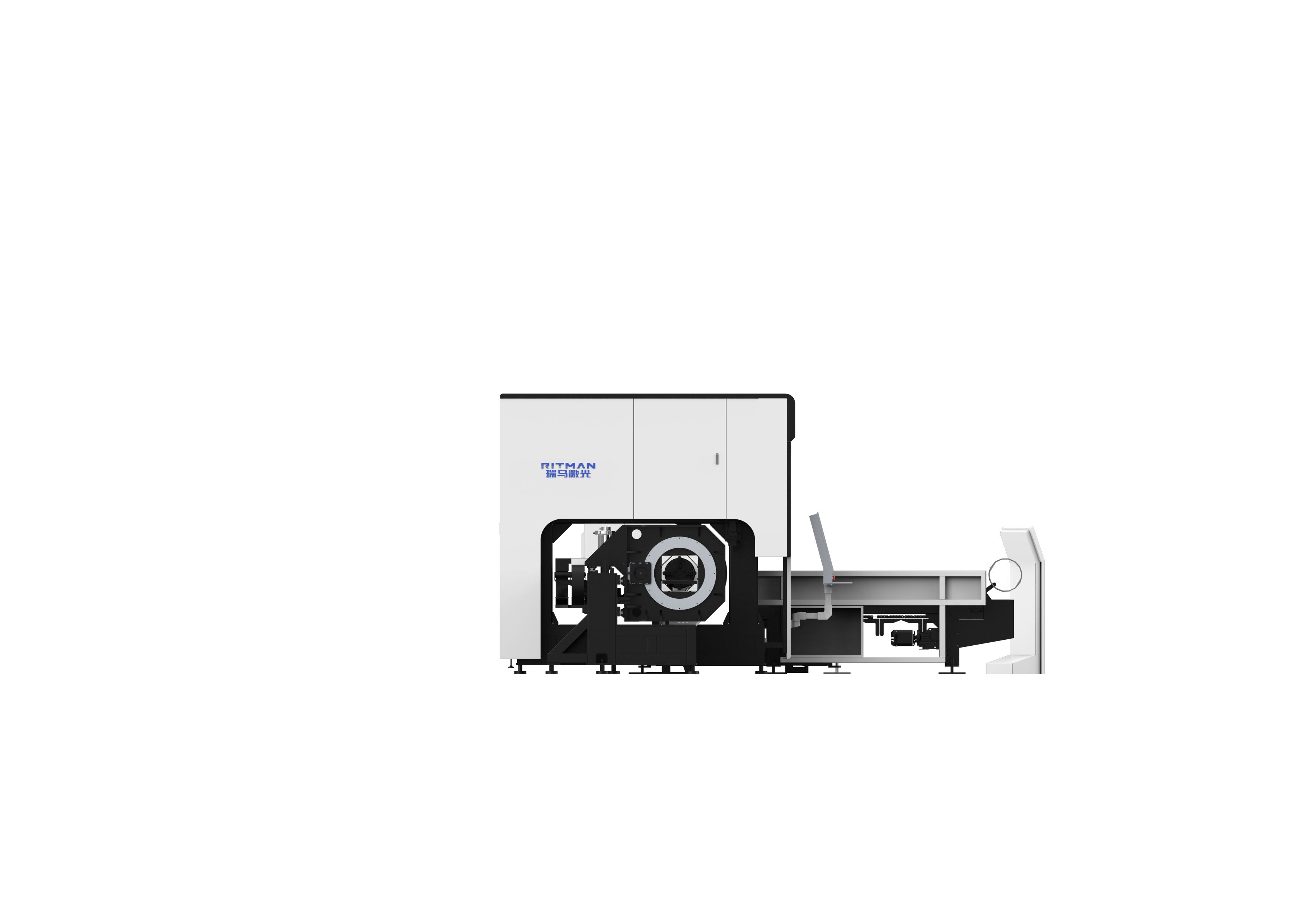

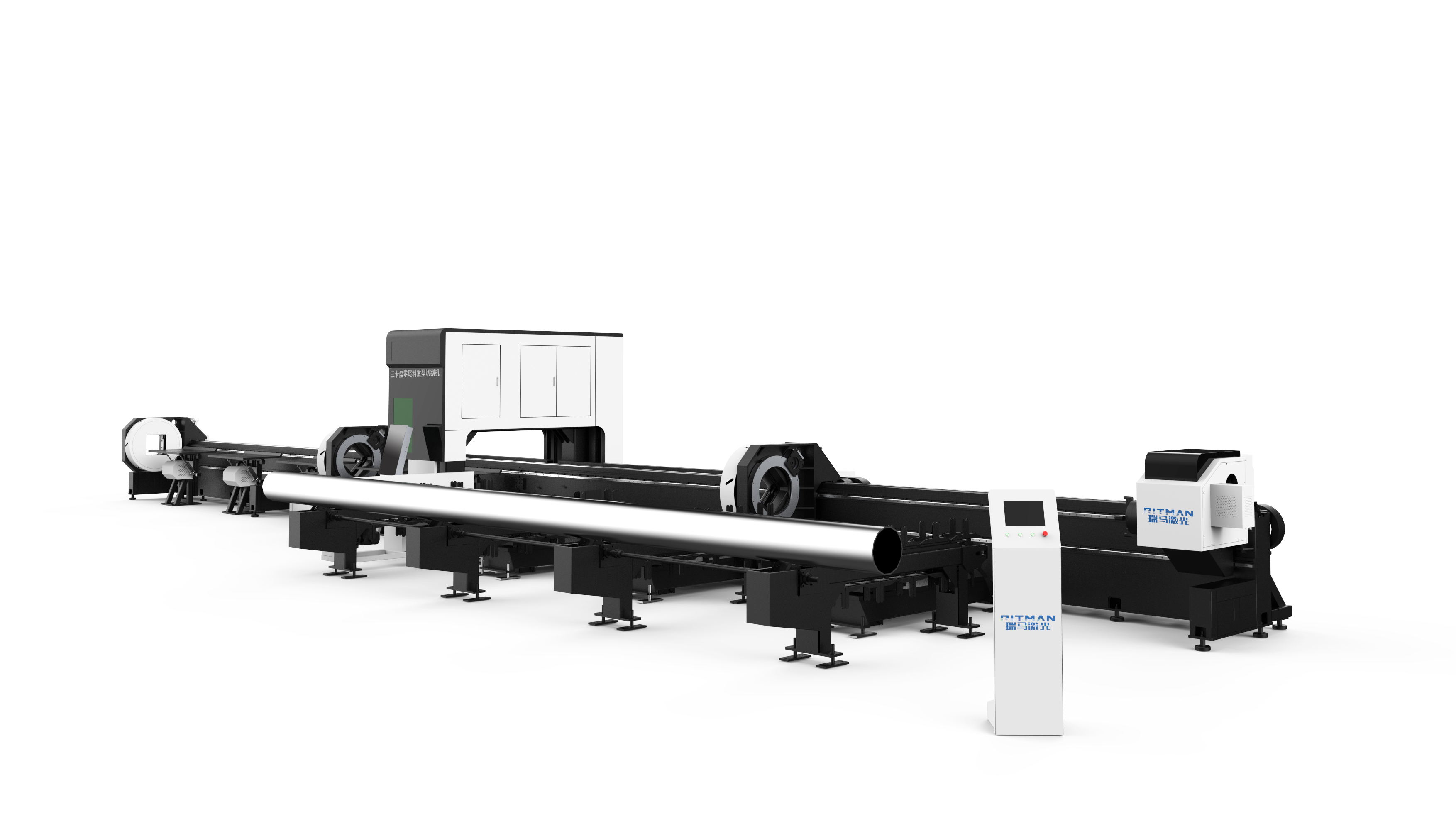

4 Chuck Laser Pipe Cutting Machine

Features

Adopting an 'L'-shaped side-mounted structure, the automatic loading and unloading and follow-up support devices are easy to arrange and implement; the center of gravity of the whole machine is lower than that of the formal type, with stable operation and high precision; precision parts such as guide rails and racks are easy to maintain, dust-proof and The safety is higher than the formal type.

Adopting a modular splicing structure, the loading length and unloading length can be freely combined and spliced.

Floating blanking device, when cutting square tubes and rectangular tubes, the floating support table will follow the pipe to float up and down during the rotation, better supporting the steel and ensuring cutting accuracy and quality.

Contact Now Pdf Download

Product Details

Side Hung Bed

Adopting an L-shaped side hanging structure, automatic loading and unloading, and a follow-upsupport device for convenient layout and implementation; The center of gravity of the whole machineis lower than that of the regular installation, with smooth operation and high accuracy, Precisioncomponents such as quide rails and racks are easy to maintain, with higher dust prevention and safetycompared to traditional ones

Modular structure

Adopting a modular splicing structure, the length of loading andunloading can be freely combined and spliced.

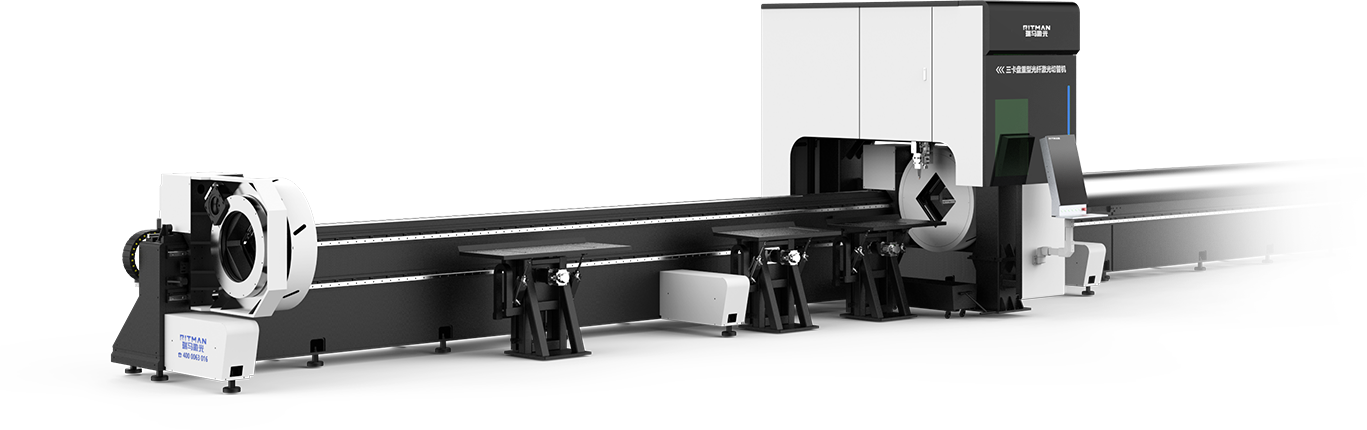

Floating Cutting

The floating feeding device, during the cutting of square and rectangular pipes, thefloating support platform will follow the pipe up and down during the rotation process.better supporting the steel and ensuring cutting accuracy and quality.

Four Chucks Structure

Heavy-duty pneumatic chucks for stable clampingMaximum camping diameter: 660mm (Round Tube)Single tube bearing: 3000Kg

Features

Model	RM-LC TQ12048	RM-LC TQ12052	RM-LC TQ 12066
Power	3000W-20000W	3000W-20000W	3000W-20000W
Pipe size range	〼/◎：60-480mm	〼/◎：30-520mm	〼/◎：100-660mm
Max processable pipe length	12000mm	12000mm	12000mm
Shortest remaining material	0	0	0
Max weight pipes	1600kg	2000kg	3000kg
Positioning accuracy	±0.05mm	±0.05mm	±0.05mm
Repetitve positioning accuracy	±0.03mm	±0.03mm	±0.03mm
