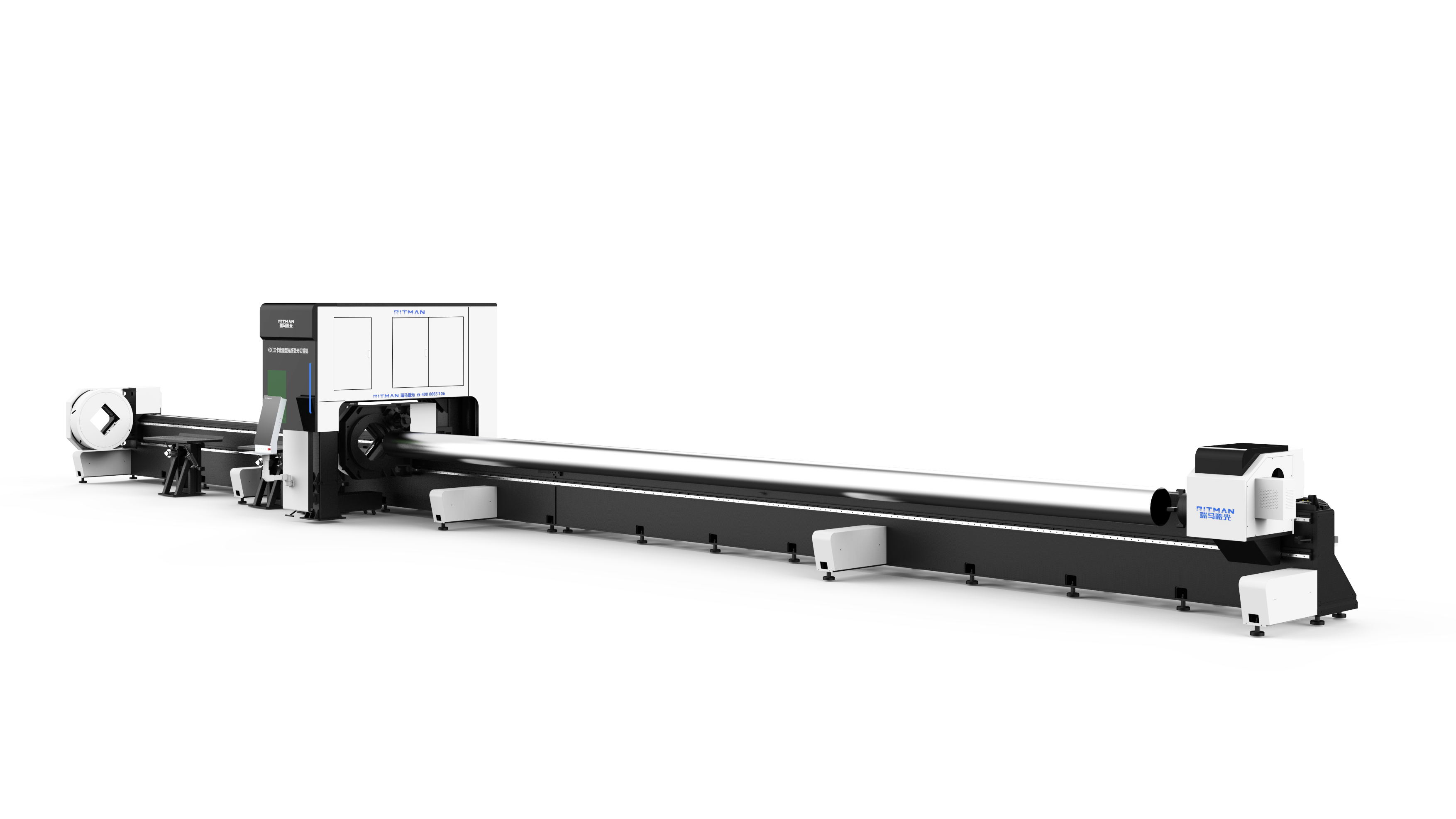

3 Chuck Tube Laser Cutting Machine

Adopting 'L' type side-mounted structure, automatic loading and unloading, following support device is convenient to arrange and realize; the whole machine has lower center of gravity than the front-mounted type, stable operation and high precision; guide rail, rack and other precision parts are easy to maintain, dustproof and higher safety than the front-mounted type. Adopting modularized splicing structure, the length of the upper material and the lower material can be freely combined and spliced. The floating discharging device, when cutting square and rectangular tubes, the floating support table will follow the tubes up and down during the rotating process, which can better hold the steel and ensure the cutting precision and quality.

Contact Now Pdf Download

Product Details

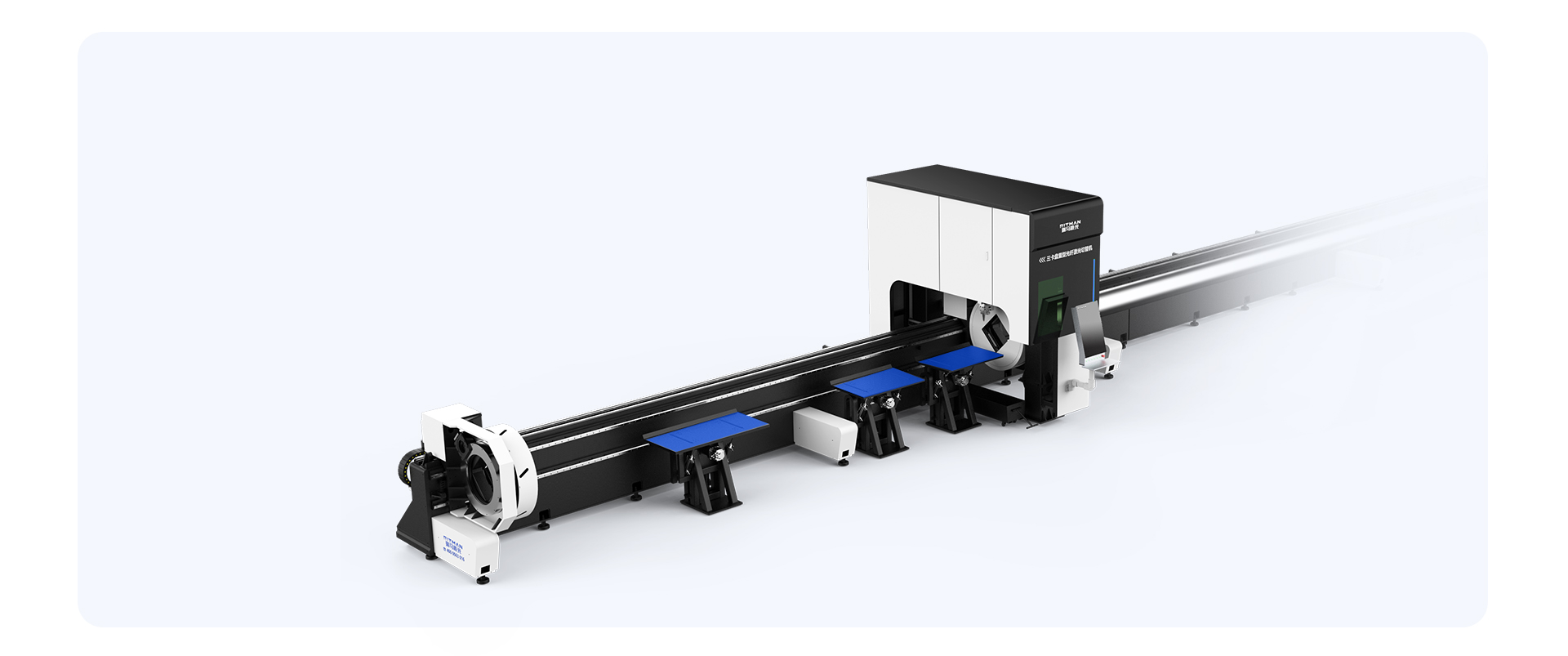

Side Hung Bed

Adopting an L-shaped side hanging structure, automatic loading and unloading, and a follow-upsupport device for convenient layout and implementation; The center of gravity of the whole machineis lower than that of the regular installation, with smooth operation and high accuracy; Precisioncomponents such as quide rails and racks are easy to maintain, with higher dust prevention and safetycompared to traditional ones.

Side Hung Bed

Adopting an L-shaped side hanging structure, automatic loading and unloading, and a follow-upsupport device for convenient layout and implementation; The center of gravity of the whole machineis lower than that of the regular installation, with smooth operation and high accuracy; Precisioncomponents such as guide ralls and racks are easy to maintain, with higher dust prevention and safetycompared to traditional ones.

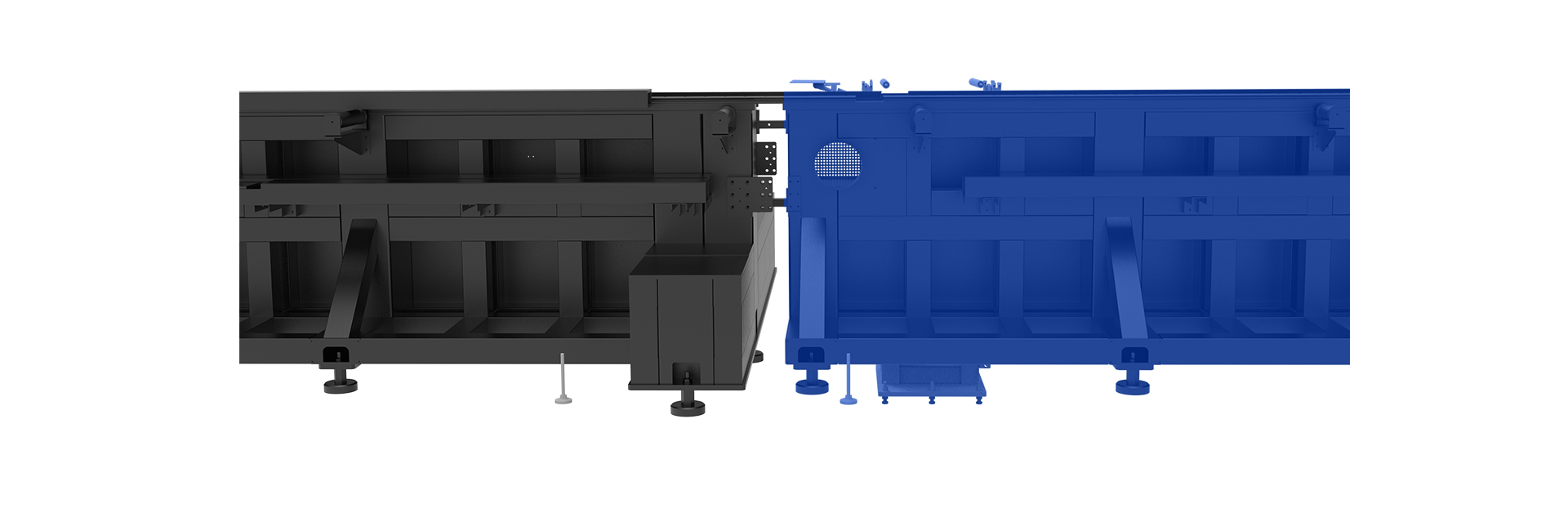

Modular structure

Adopting a modular splicing structure, the length of loading andunloading can be freely combined and spliced.

Floating Cutting

The floating feeding device, during the cutting of square and rectangular pipes, the floating support platform will follow the pipe up and down during the rotation process. better supporting the steel and ensuring cutting accuracy and quality.

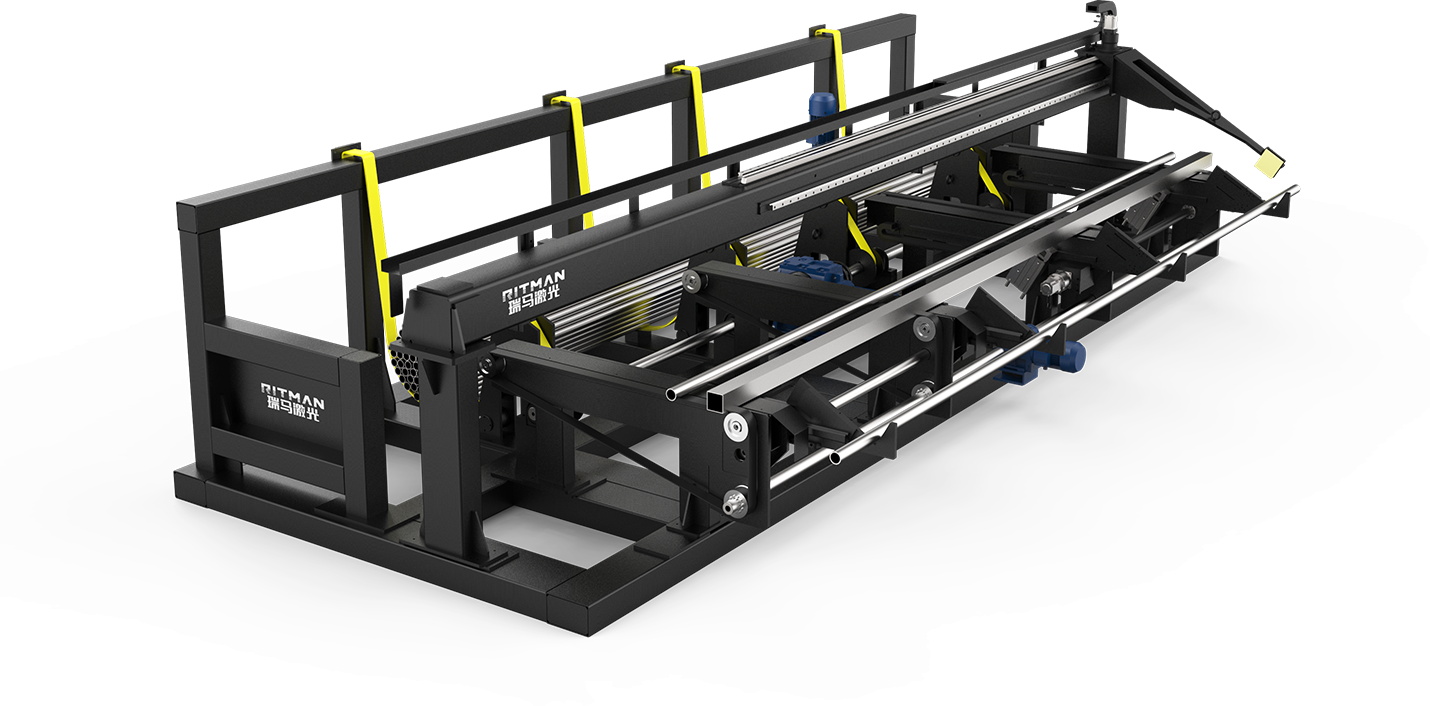

Fully Automatic Loading AndUnloading Device

Optional semi-automatic/fully automatic loading and unloading devices can improve worksafety, reduce the risk of injury, and reduce the workload of workers.

3 Chuck Tube Laser Cutting Machine

Laser Cutting Head

Intelligent cutting head (up to 40KW), new optical design and optical lens optimization treatment can effectively improve production efficiency and product yield, it meet the strict performance requirements of air and nitrogen high power cutting. (The GERMANY PRECITEC laser cutting head is optional)

3 Chuck Tube Laser Cutting Machine

Pneumatic Chuck

It adopts pneumatic clamp design on both sides and it can modulate the center automatically. Integral built-in driver,good dustproof,the transmission is accurate and stable,easy installation from multiple angles.

Technical Parameters

Model	RM-LC TD7013	RM-LC TD7016	RM-LC TD7024	RM-LC TD7036	RM-LC TD9024	RM-LC TD12024
Power	1500W-3000W	1500W-3000W	1500W-6000W	1500W-6000W	1500W-6000W	1500W-6000W
Pipe size range	〼/◎：20-360mm	〼/◎：30-480mm	〼/◎：60-520mm	〼/◎：10-240mm	〼/◎：20-360mm	〼/◎：10-240mm
Max processable pipe length	7000mm	7000mm	7000mm	7000mm	9000mm	12000mm
Max remaining material	100mm	100mm	100mm	100mm	100mm	100mm
Max weight of pipe	150kg	200kg	300kg	800kg	300kg	300kg
positioning accuracy	±0.05mm	±0.05mm	±0.05mm	±0.05mm	±0.05mm	±0.05mm
Repeatability	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm
