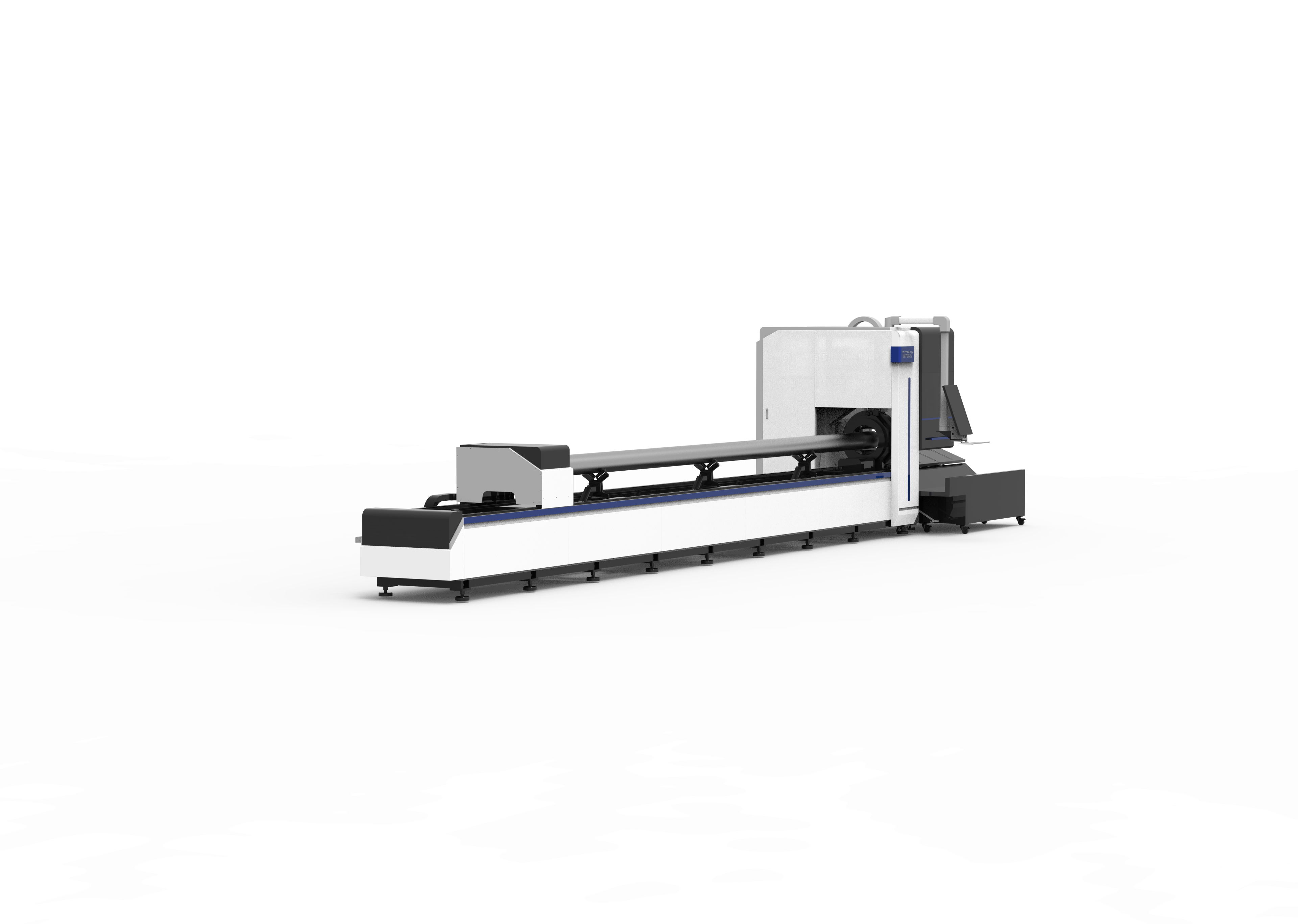

2 Chuck Tube Fiber Laser Cutting Machine

Features

The tail card holder has a high load-bearing box design, is light in weight and has good rigidity.

The integrated design of the electrical cabinet and the bed reduces the wiring length and the number of connectors. The laser is installed in the electrical cabinet and shares the air conditioner of the electrical cabinet to reduce condensation on the laser.

The equipment is equipped with a fully self-developed MES system to help enterprises achieve lean production, provide operations planning and scheduling, production process monitoring, quality management and other functions to create an intelligent manufacturing execution system, which can effectively improve order response speed and production efficiency while also reducing labor and reducing costs. operating costs.

Multiple sets of servo supports, controlled by one servo motor. Compact structure and high reliability. For round tube and square tube processing, a cost-effective reducing wheel support can be selected.

Contact Now Pdf Download

Product Details

2 Chuck Tube Fiber Laser Cutting Machine

Features

Model	RM-LC TD7013	RM-LC TD7016	RM-LC TD7024	RM-LC TD7036	RM-LC TD9024	RM-LC TD12024
Power	3000W-6000W	3000W-6000W	3000W-6000W	3000W-6000W	3000W-6000W	3000W-6000W
Pipe size range	〼/◎：10-130mm	〼/◎：10-160mm	〼/◎：10-240mm	〼/◎：20-360mm	〼/◎：10-240mm	〼/◎：10-240mm
Max machinable pipes	7000mm	7000mm	7000mm	7000mm	9000mm	12000mm
Shortest Remaining material	100mm	100mm	100mm	100mm	100mm	100mm
Max weight pipes	150kg	150kg	300kg	800kg	300kg	300kg
Positioning acuracy	±0.05mm	±0.05mm	±0.05mm	±0.05mm	±0.05mm	±0.05mm
Repetitive posttioning accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm

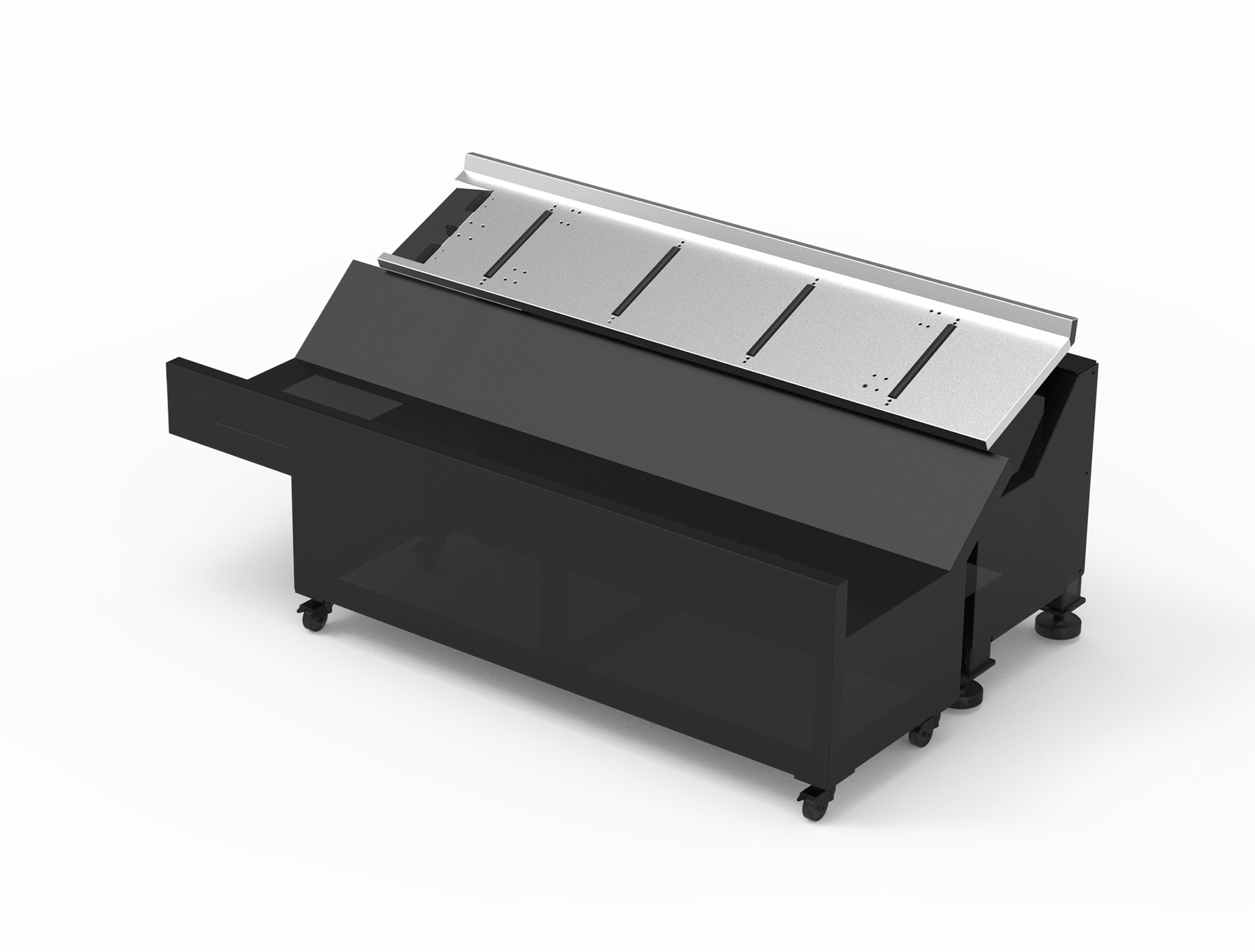

Receiving Machine

There are three different types available: servo driven feeding machines for square pipes, rectangularpipes, profiles, and complex cross-section pipes, Variable diameter wheel inclined surface materialreceiving frame is used for round and square pipes, A simple inclined material receiving frame is usedfor shorter and lighter round and square pipes.

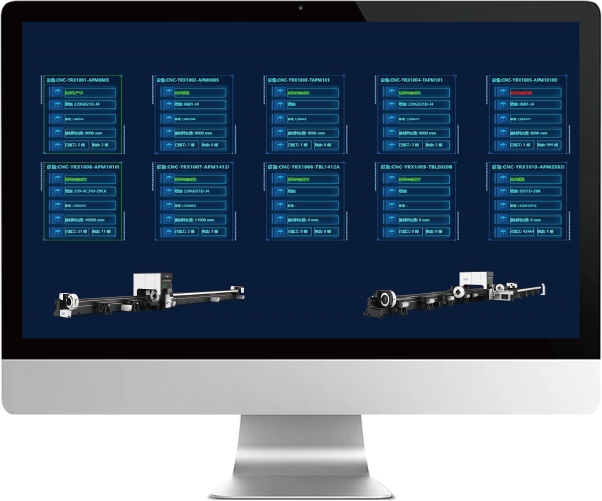

Fully Self-developed Mes System

The equipment is equipped with a fully self-developed MES system, lean production, jobscheduling, production process monitoring, quality management and other functions, effectivelyimproving order response speed and production efficiency.

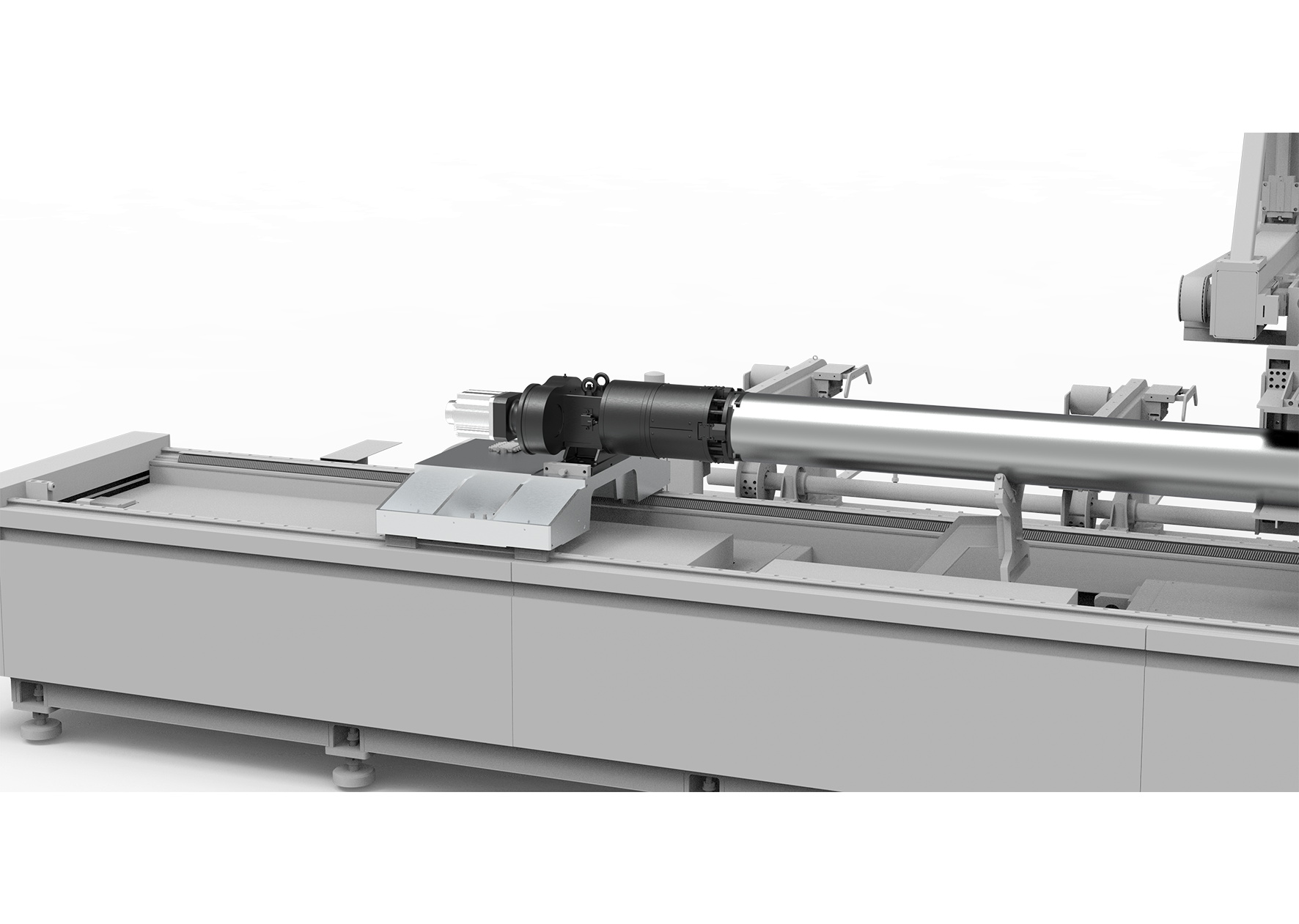

Lightweight And Sturdy Card Holder

The tail card holder is designed with a high load-bearing box, which islightweight and has good rigidity.

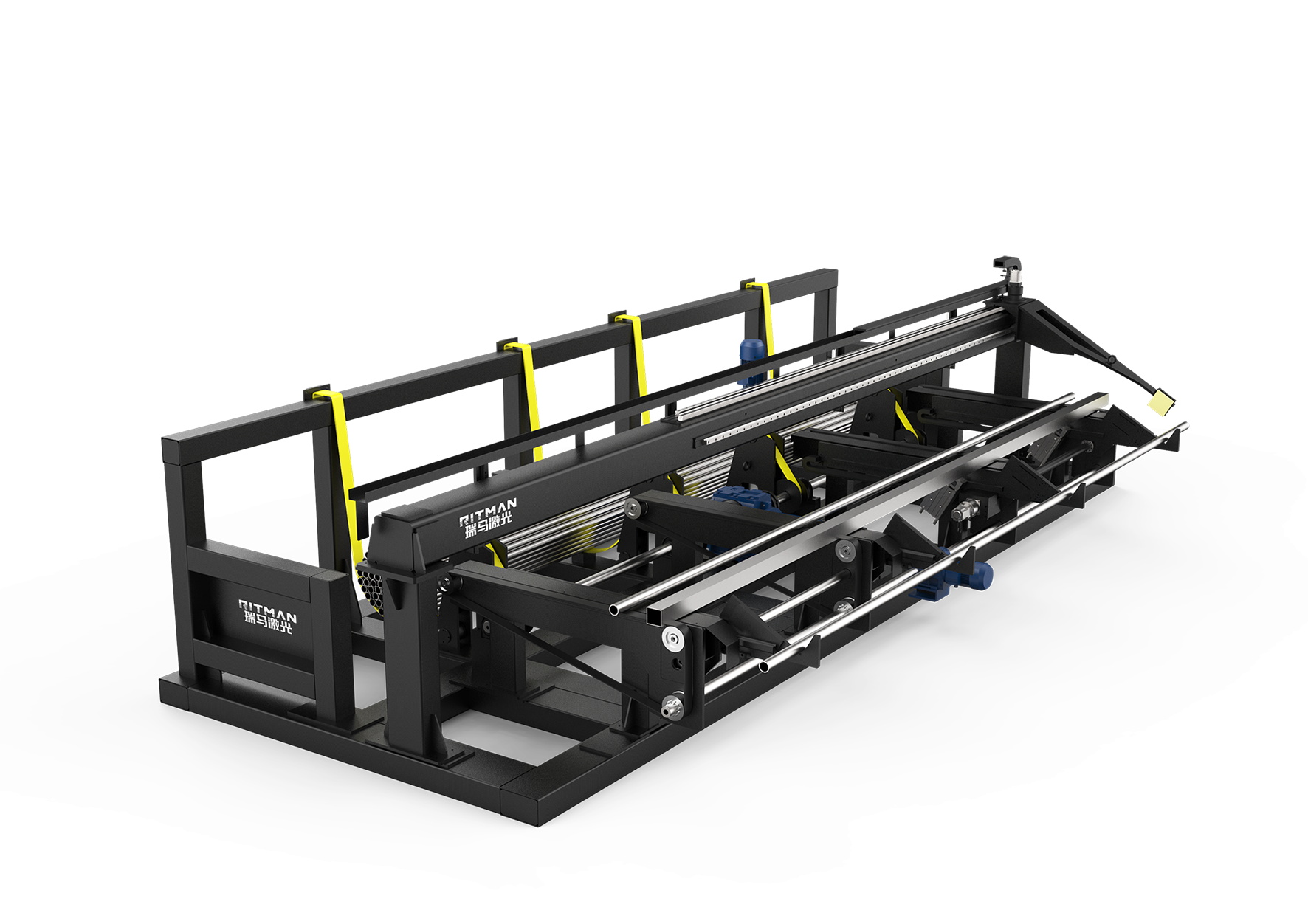

Fully Automatic Loading AndUnloading Device

Optional semi-automatic/fully automatic loading and unloading devices canimprove work safety, reduce the risk of injury, and reduce the workload of workers
