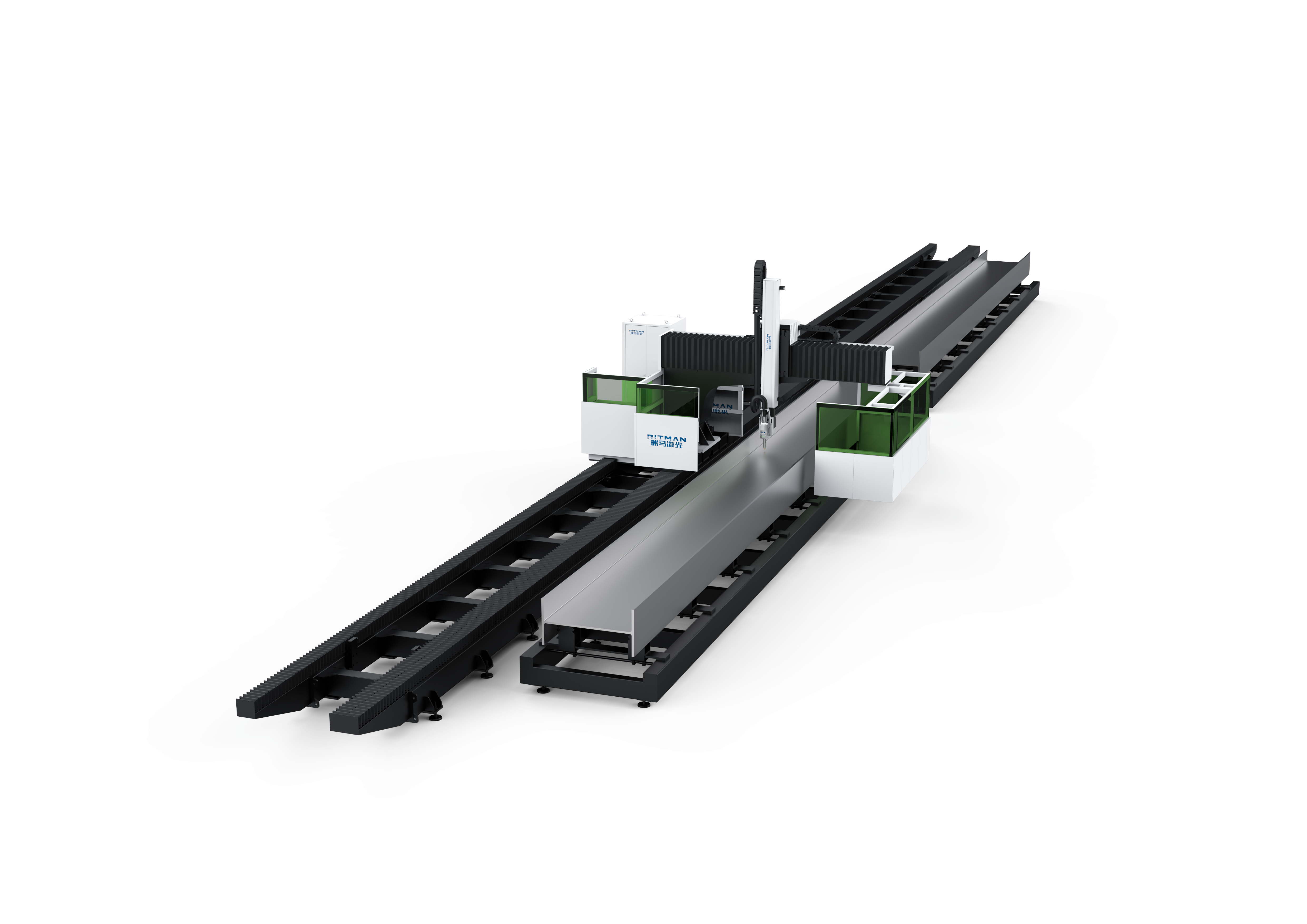

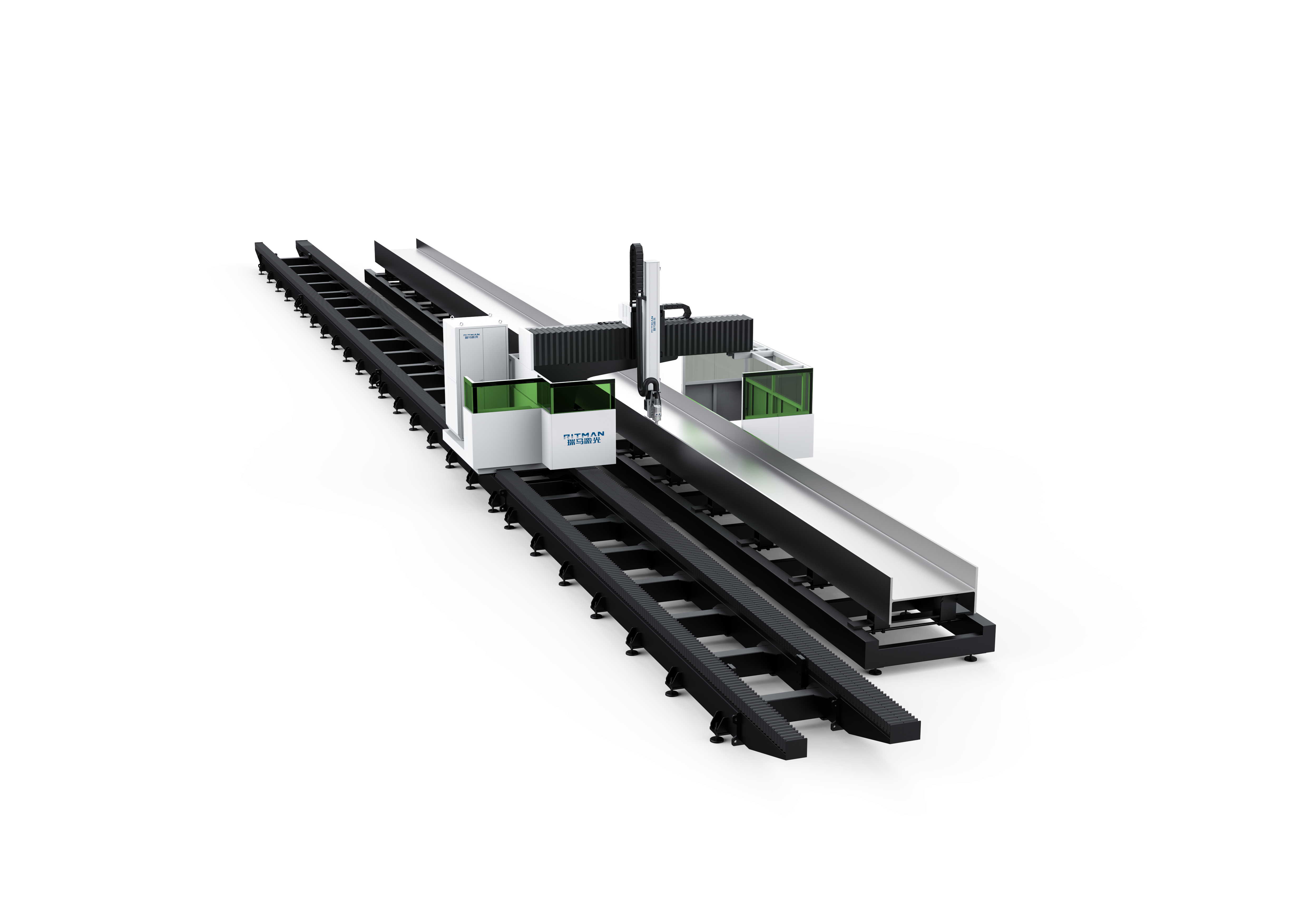

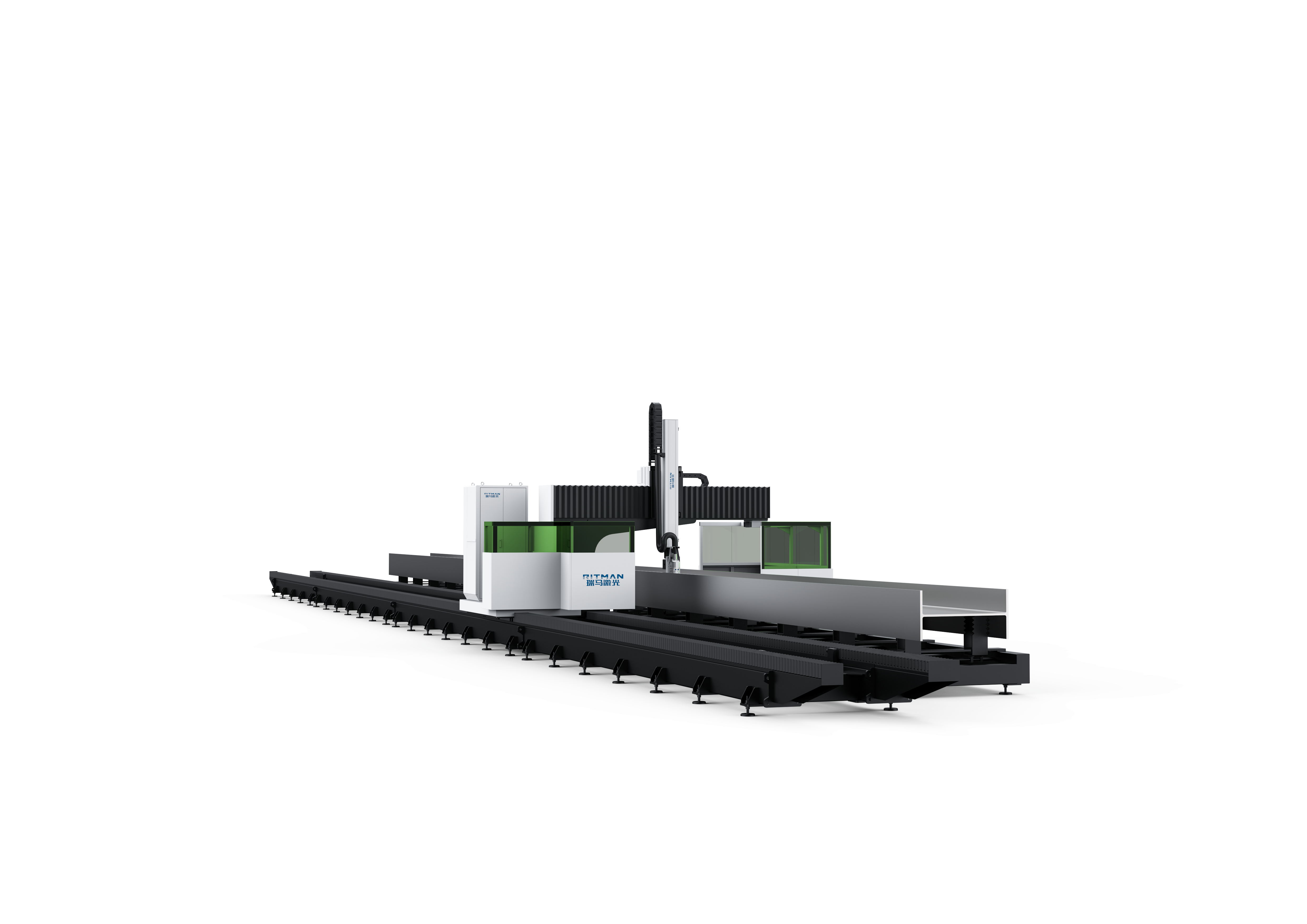

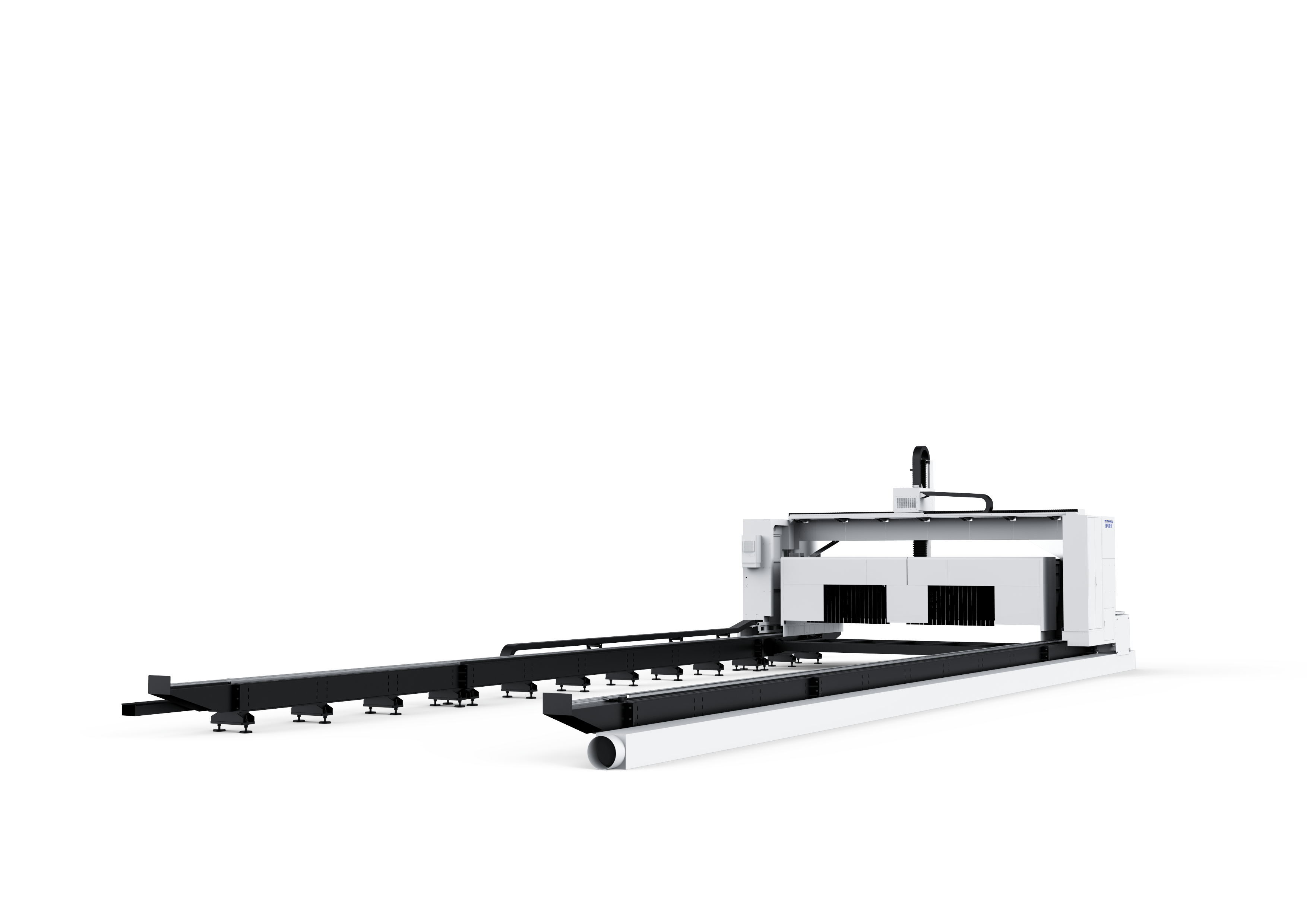

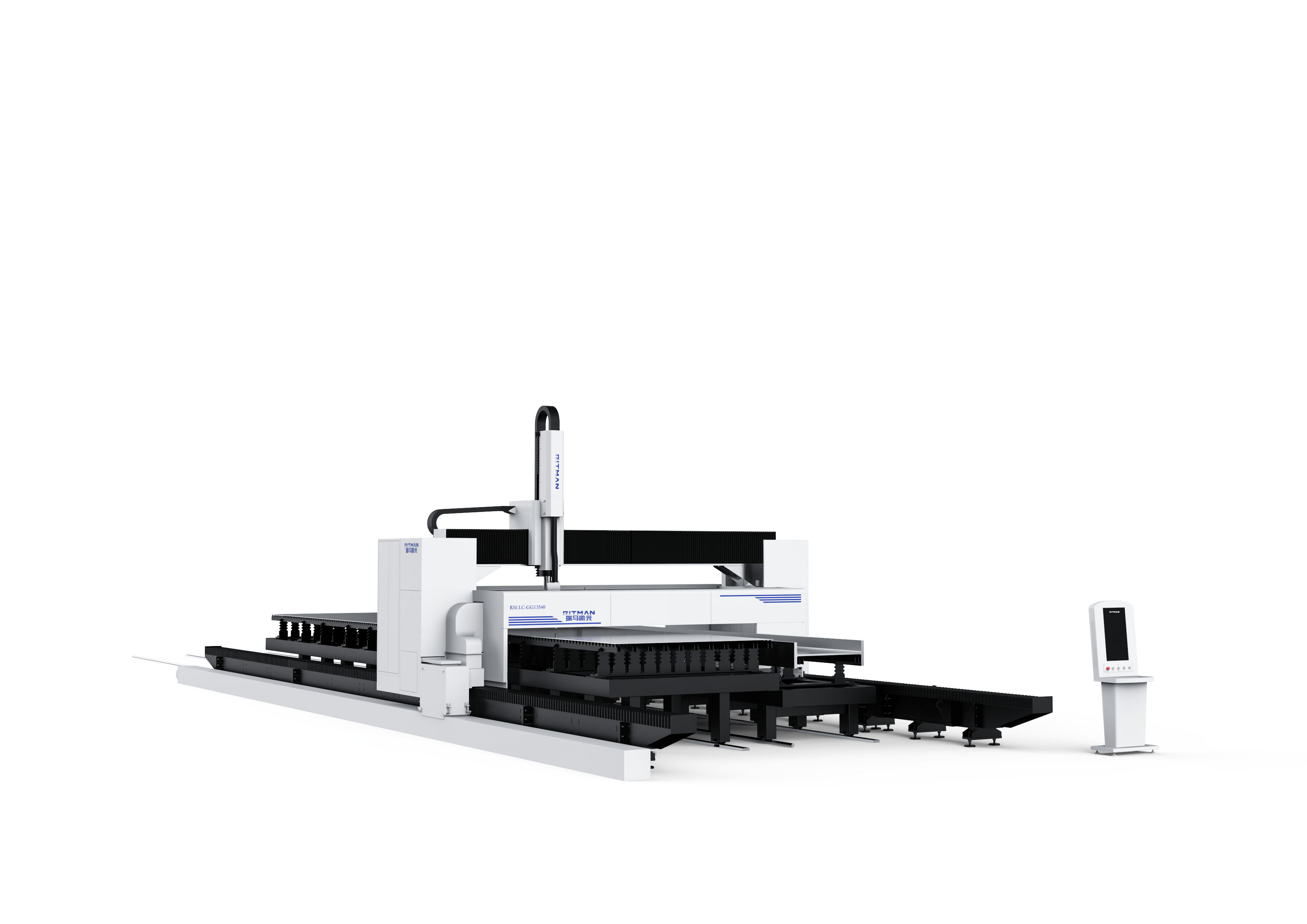

H-beam metal laser cutting machine

High quality laser manufacturer cantilever gantry metal sheet bevel I-beam laser cutting machine

1、One-Stop Solution for the Steel Structure Industry

2、Dual-Workstation Design, Wallet-Friendly

3、All-in-One Process Package, Flexi and Efficient

4、Pro Profile Cutting System, Smart Nesting Help

5、Spot-On Workpiece Compensation, Single Go Shaping

6、All-in-One Workflow, Cuts Labor Costs

Ritman Laser specializes in manufacturing H-beam laser cutting machines. Leave a message online to get the best price offer for stable laser cutting machines. We will try our best to meet all your needs.

Contact Now Pdf Download

Product Details


High Precision And High Efficiency

Optional semi-automatic/fully automatic loading and unloading devices can improve work safety.

reduce the risk of injury, and reduce the workload of workers.

High Compatibility

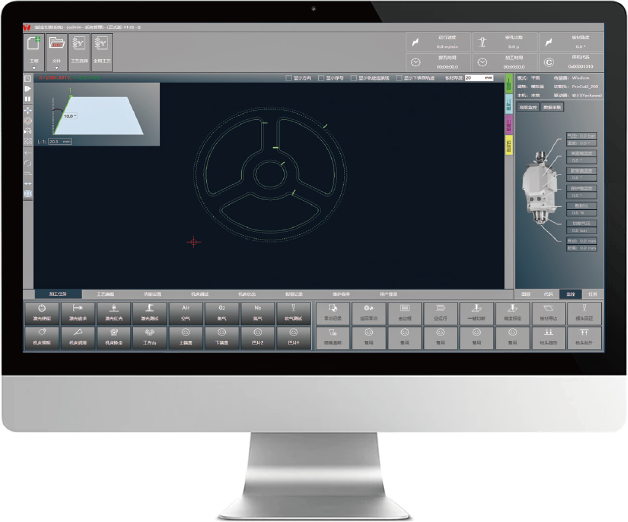

The steel nesting software is compatible with design software formats such as Tekla, SW, CAD, and

Daoheng


Acu Cutting Head

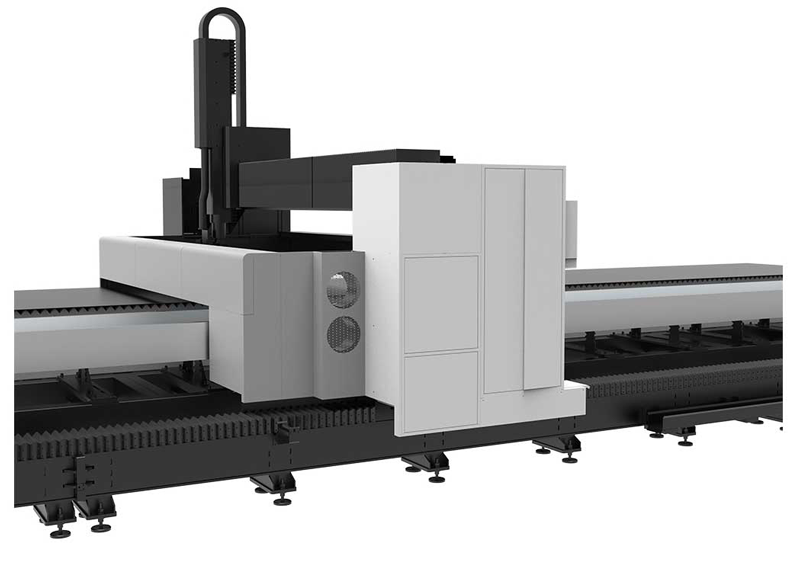

The ACU cutting head swing mechanism integrates U-axis follow-up function, with acompact structure, high dynamic performance, stability and reliability.


High Control Accuracy

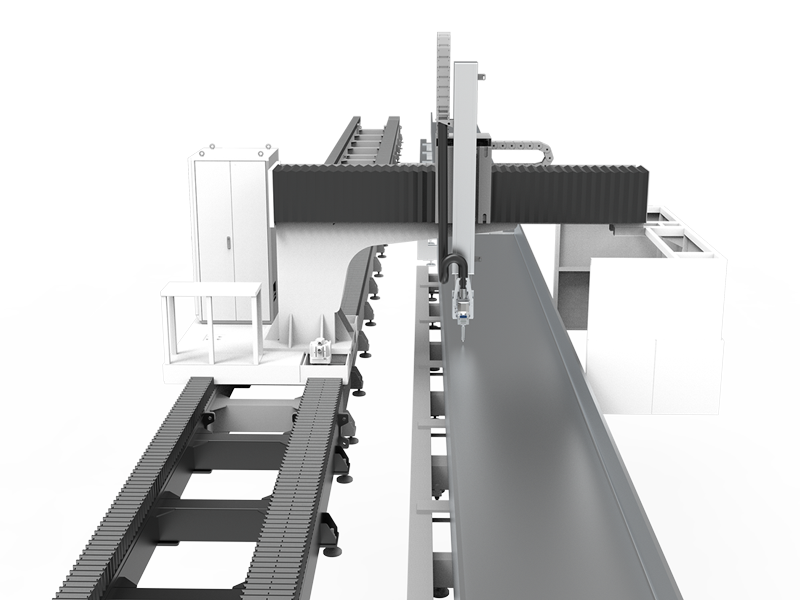

Electrical cabinets and operating platforms move with the crossbeam, reducing the lengthof control lines, having strong anti-interference ability, and high control accuracy.

Application Industries

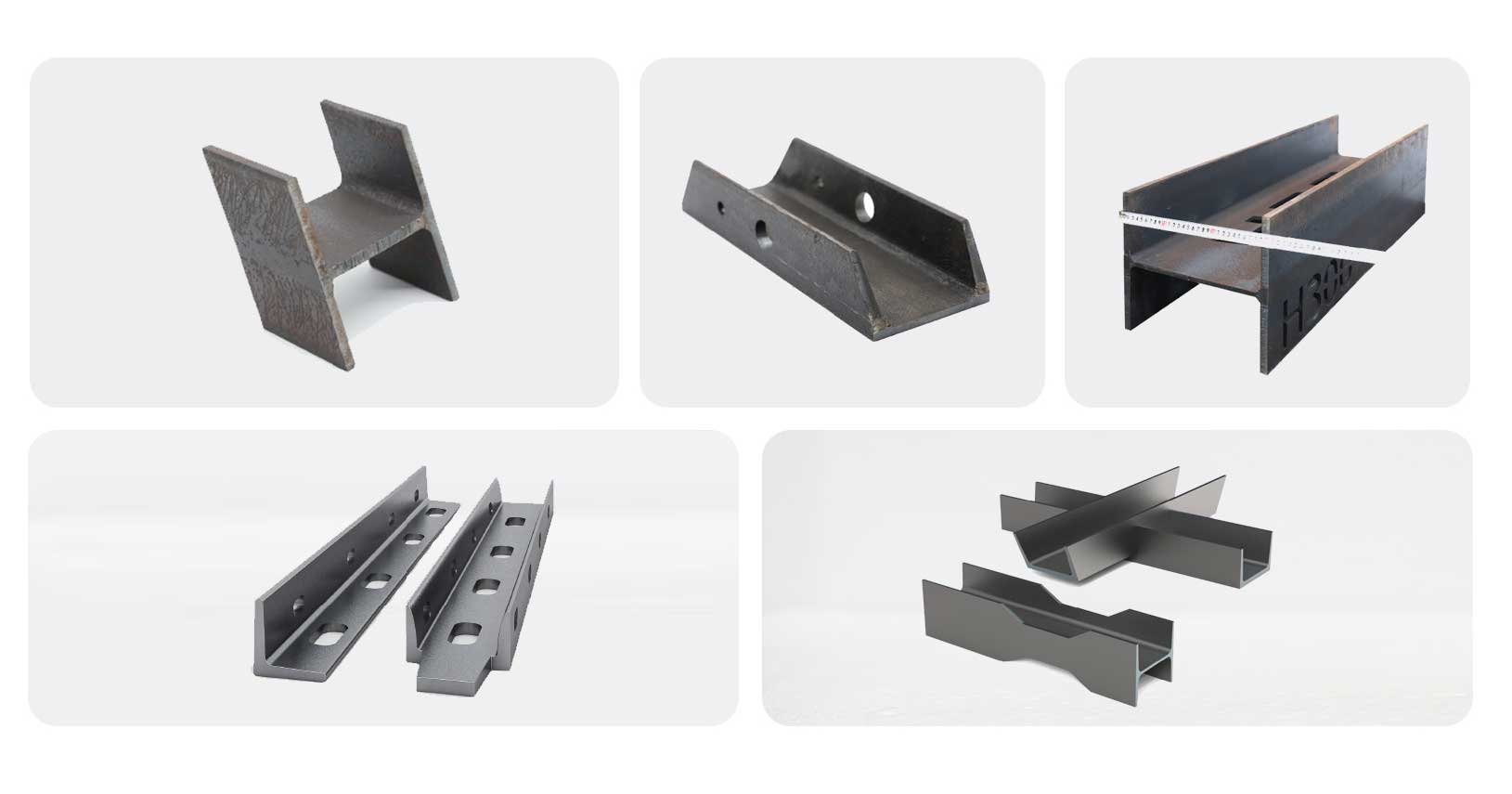

Cutting Sample

Technical Parameters

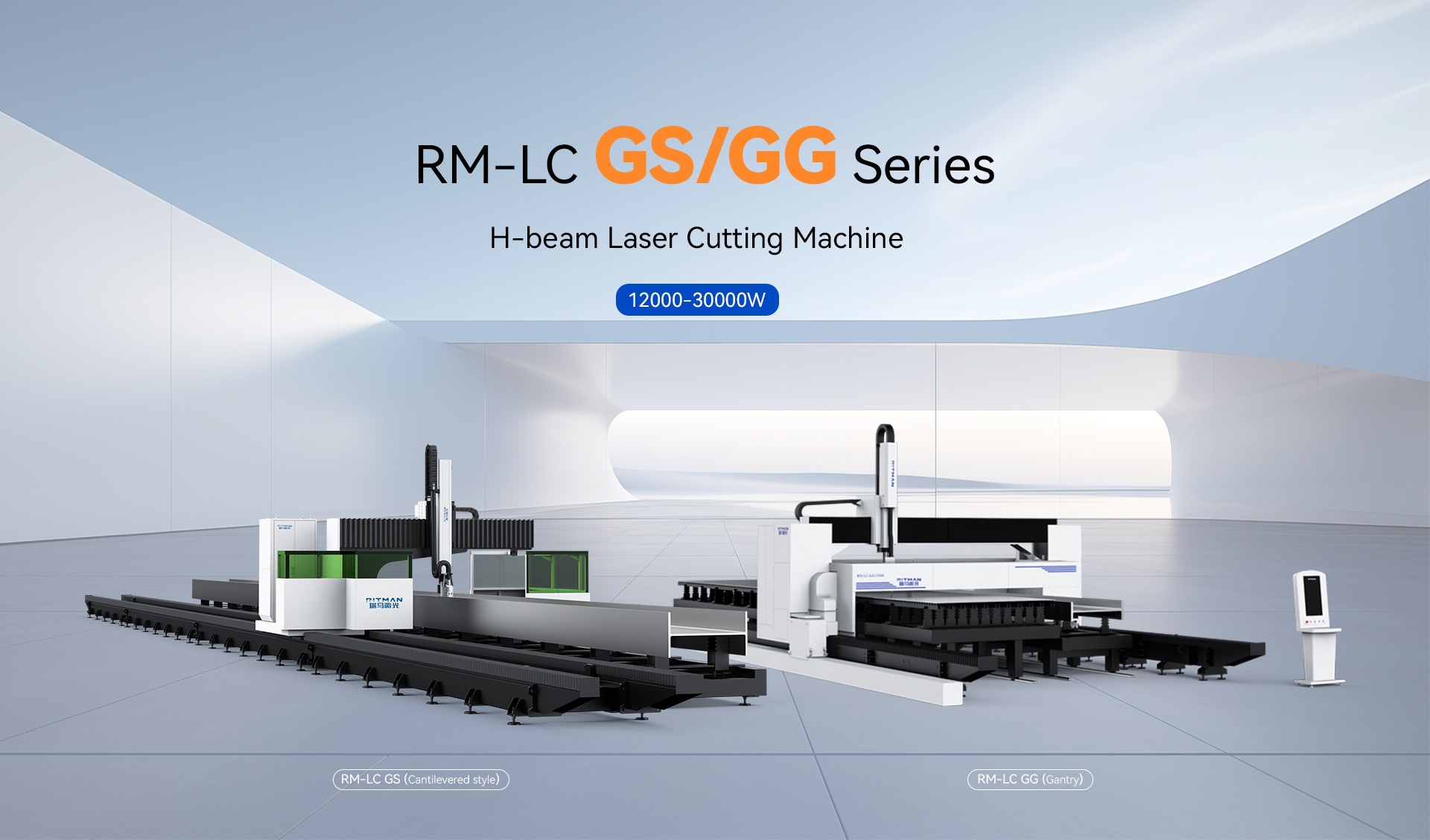

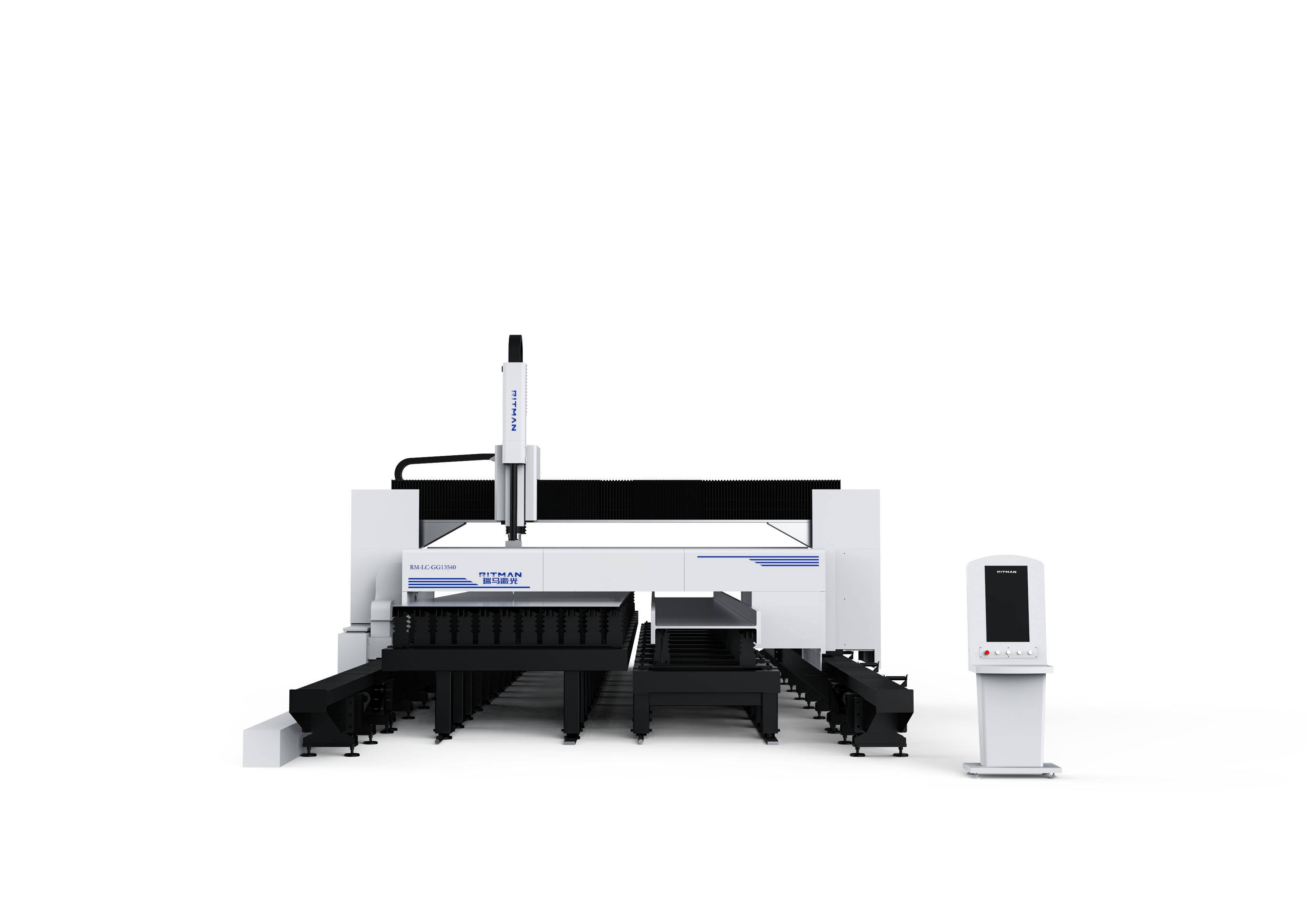

	RM-LC GG (Gantry)	RM-LC GS (Cantilevered style)
Model	RM-LC GS26018	RM-LC GG26030	RM-LC GG13540
Power	12000W-30000W	12000W-30000W	12000W-30000W
Processing format	Dual station：12500 mm×1800mm×950 mm Single workstation：26000 mm×1800mm×950 mm	Dual station：12500 mm×3000mm（Bevel）×950 mm Single workstation：26000 mm×3000mm（Bevel）×950 mm	Dual station：13500mmX1800mmX950mm Single workstation：13500mmX4000mmX950mm
A. C-axis	±90°	±90°	±90°
Positioning accuracy	±0.06mm	±0.06mm	±0.06mm
Repetitive positioning accuracy	±0.05mm	±0.05mm	±0.05mm
Cutting accuracy	0.5mm	0.5mm	0.5mm
Maximum movement speed of X/Y axis	30m/min	30m/min	74m/min
Acceleration	1.0G	1.0G	1.0G
